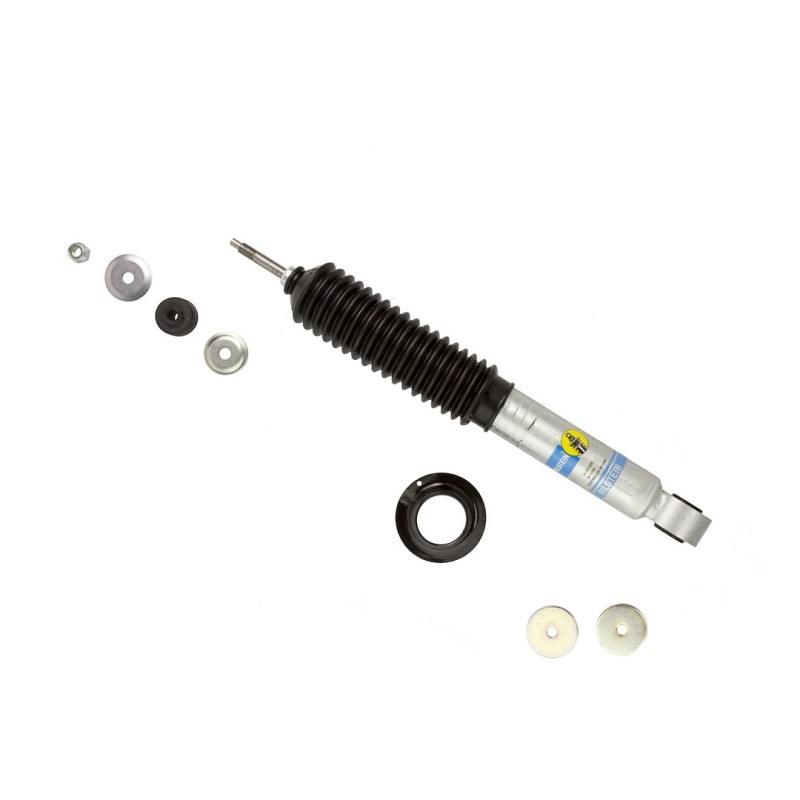

Shock Absorber for 2001-2007 Toyota Sequoia 0-2.8'' Front Lift Bilstein

24-261425 Bilstein Shock Absorber


Extended length, in. :18.35 Inch
Collapsed length, in. :13.23 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; B85100 Adj; Gas Charged; Limited Lifetime Warranty; Adjustable; Extended Height 18.35 Inches/ Compressed Height 13.23 Inches; With Shock Boots; Zinc Plated; Single; See Also Old Part Number 24-188265
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 18.35 Inch Compressed Length (IN): 13.23 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 1/2 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: Yes Estimated Install Time (Hours): 0.5 Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coil over style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0 To 2.75 Inches of front lift (depending on application). The monotube shock absorbers feature a 46 Millimeter digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle. Features & Benefits Designed For Trucks And SUV's With A Front OE Coil Over Style Suspension Multiple Snap-Ring Grooves In The Body Allow For Different Spring Seat Positions, Providing 0 To 2.75 Inches Of Front Lift Monotube Shock Absorbers Feature A 46 Millimeter Digressive Piston A With Self-Adjusting Deflective Disc Valve Setting Shock Absorbers Provide Increased Wheel Travel And Improved Handling Shock Absorber Is The Easiest Way To Level Out Your Vehicle Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/E4-WM5-Y517A00_1.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/B8_5100_RHA_Flyer.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/B8_5100_RHA_Flyer.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 18.35 Inch, Compressed Length (IN): 13.23 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 1/2 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
