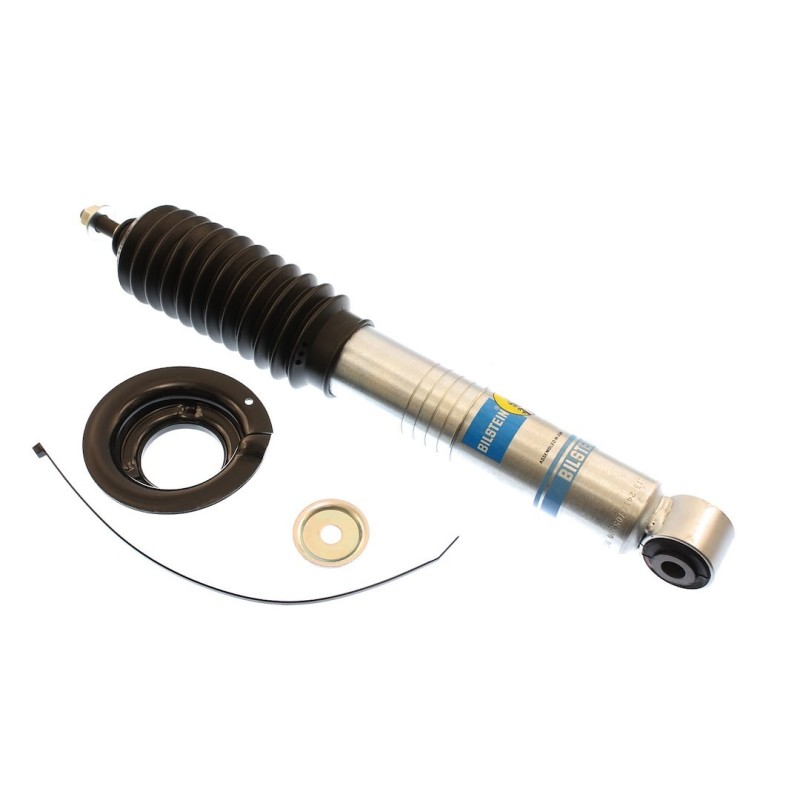

Shock Absorber for 2009-2012 Suzuki Equator Front Lift

24-187053 Bilstein Shock Absorber


Extended length, in. :15.26 Inch
Collapsed length, in. :10.55 Inch
Upper mount: Stud
Lower Mount: Eyelet
Shock Absorber; 5100 Ride Height Adjustable; Ride Height Adjustable; Lifts 0 Inch To 2 Inch; 15.26 Inch Extended Height; 10.55 Inch Compressed Height; Single; With Snap Ring Grooved Shock Absorber For Varied Spring Seat Positions/ Spring Seat/ Shock Boots
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 15.26 Inch Compressed Length (IN): 10.55 Inch Upper Mounting Style: Stud Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Semi-Universal Rod Diameter (IN): 1/2 Inch Valving Type: Self-Adjusting Deflective Disc Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: Yes Estimated Install Time (Hours): 0.5 BILSTEIN 5100 Series Ride Height Adjustable Shock Absorbers are designed for front coilover style pickup and SUV suspensions. With the use of multiple snap ring grooves to position the spring seat at different heights the vehicles ride height can be changed anywhere between 0 To 2.5 Inch depending on application. Features & Benefits An Extremely Affordable And Practical Alternative To Coil Spring Spacers, With The Benefit Of Bilstein's Superior Monotube Design Utilizes The Vehicle's Stock Front Coil Springs Zinc Finish With Multi-Layer Unique Bilstein Coating For Extreme Protection Self-Adjusting Deflective Disc Valving With Independent Rebound And Compression Tuning Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/E4-WM5-Y338A00.pdf https://vehiclepartimages.com/PMDT/BLS/Warranty/warranty_all_v2.1.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/B8_5100_RHA_Flyer.pdf https://vehiclepartimages.com/PMDT/BLS/TechnicalBulletins/USA SDS_Shock_Air Spring_V2_EN.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/B8_5100_RHA_Flyer.pdf https://vehiclepartimages.com/PMDT/BLS/InstallationInstructions/USA SDS_Shock_Air Spring_V2_EN.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 15.26 Inch, Compressed Length (IN): 10.55 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Semi-Universal, Rod Diameter (IN): 1/2 Inch, Valving Type: Self-Adjusting Deflective Disc Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: Yes, Estimated Install Time (Hours): 0.5]
