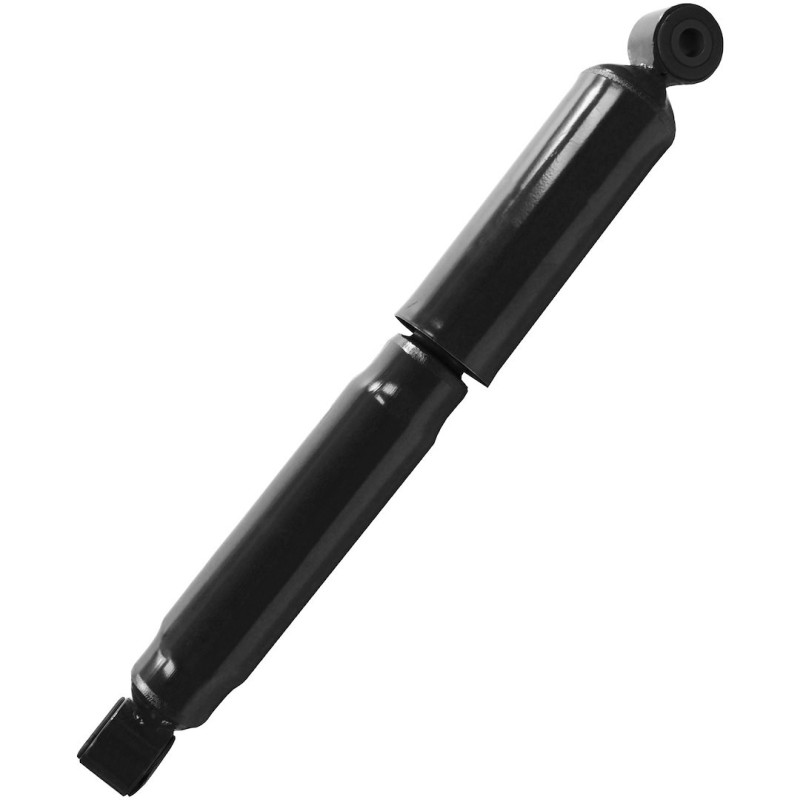

Shock Absorber for 2014-2020 Ram ProMaster 3500 0'' Rear Monroe

66440 Monroe Shock Absorber


Extended length, in. :19.73 Inch
Collapsed length, in. :12.38 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; Magnum ™; OE Replacement; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; Without Shock Boots; Yellow; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Twin Tube Adjustable Valving: No Extended Length (IN): 19.73 Inch Compressed Length (IN): 12.38 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Yellow Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Multi Stage High Displacement Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: Yes Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5 Gas-Magnum truck shock absorbers provide firm control without a harsh ride. Features & Benefits All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction Designed For Mid To Full-Size Light-Duty Work Trucks And Vans Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Twin Tube, Adjustable Valving: No, Extended Length (IN): 19.73 Inch, Compressed Length (IN): 12.38 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Yellow, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Multi Stage High Displacement Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: Yes, Includes Hardware: No, Includes Boot: No, Estimated Install Time (Hours): 0.5]
