Lift Kit for 2019-2022 Ram 3500 4WD 5'' Front and Rear

49-19630 ReadyLift Lift Kit Suspension
For [5.0] '' Lift
[Full Front and Rear]

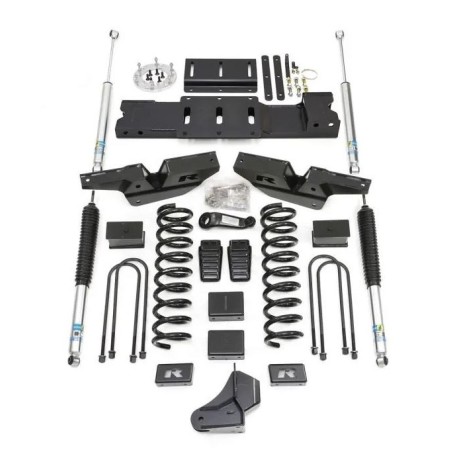

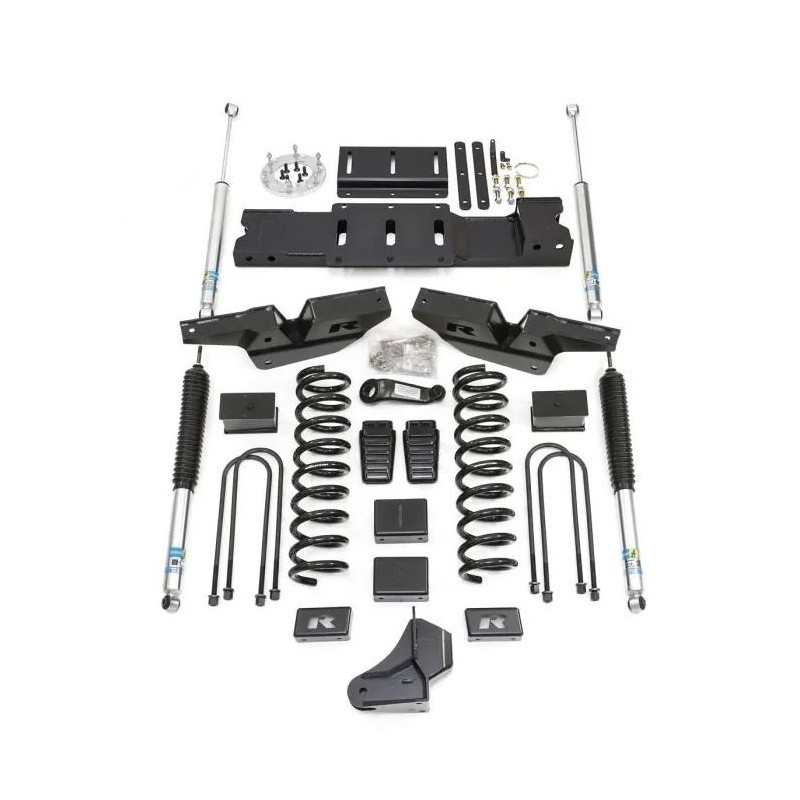

Lift Kit Suspension; 6 Inch Front Lift; 5 Inch Rear Lift; With Front And Rear Bilstein Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Coil Springs/ Radius Arm Drop Brackets/ Rear Leaf Spring Blocks And U Bolts/ Drop Pitman Arm/ Stabilizer Bar Spacers/ Installation Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 5 Inch Front Lift Type: Coil Springs Rear Lift Type: Leaf Spring Blocks And U-Bolts Maximum Tire Size: 37×13.5 Shock Type: Gas Charged Wheel Backspacing (IN): 4.3 Wheel Offset (MM): -18 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers The new RAM HD trucks are more popular than ever and the ReadyLIFT 6 Inch lift kit for 5th generation Ram 2500 HD trucks are extremely popular. That is exactly what ReadyLIFT has done by adding a new CNC-machined billet Aluminum transfer case clocking ring to improve driveline angle. Well, that’s exactly what we did for this all-new Ram 3500 application. We designed an application-specific lift kit and features an innovative Driveline Indexing System (DIS) with a transfer case clocking ring, OEM output shaft seal, and adjustable transmission crossmember. Some Ram HD trucks can experience a slight vibration after lifting due to driveline angle sensitivity. Our new 6 Inch lift kit addresses that inherent (albeit infrequent) driveline system phenomenon with the addition of our DIS – a heavy-duty transfer case clocking [indexing] ring and new transmission crossmember-positioning the transmission and pinion position for a smooth driving experience on or off-road. Features & Benefits 6 Inch Front Lift With A 5 Inch Rear Lift For The Perfect Lifted Stance Features All-New Driveline Indexing System With Transfer Case Clocking Ring And New Heavy-Duty Transmission Crossmember Maintains Factory Turning Radius Without Rubbing When Using The Recommended Wheel And Tire Size Maintains Factory Suspension Geometry And Articulation Features 4 Bilstein 5100 Series Shocks Tuned Specifically For The Ram 3500 HD For Use On The Ram 3500 4WD HD Diesel Standard Output Engine Trucks Only Allows For Up To 37x13-1/2 Tires On 9 Inch Wide Wheels With -18 Offset Compatibility With Our Indexing Ring From The Transmission To The Transfer Case Limited 5 Year Or 100,000 Mile Warranty

https://vehiclepartimages.com/PMDT/RDL/InstallationInstructions/49-19630.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 5 Inch, Front Lift Type: Coil Springs, Rear Lift Type: Leaf Spring Blocks And U-Bolts, Maximum Tire Size: 37×13.5, Shock Type: Gas Charged, Wheel Backspacing (IN): 4.3, Wheel Offset (MM): -18, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]
