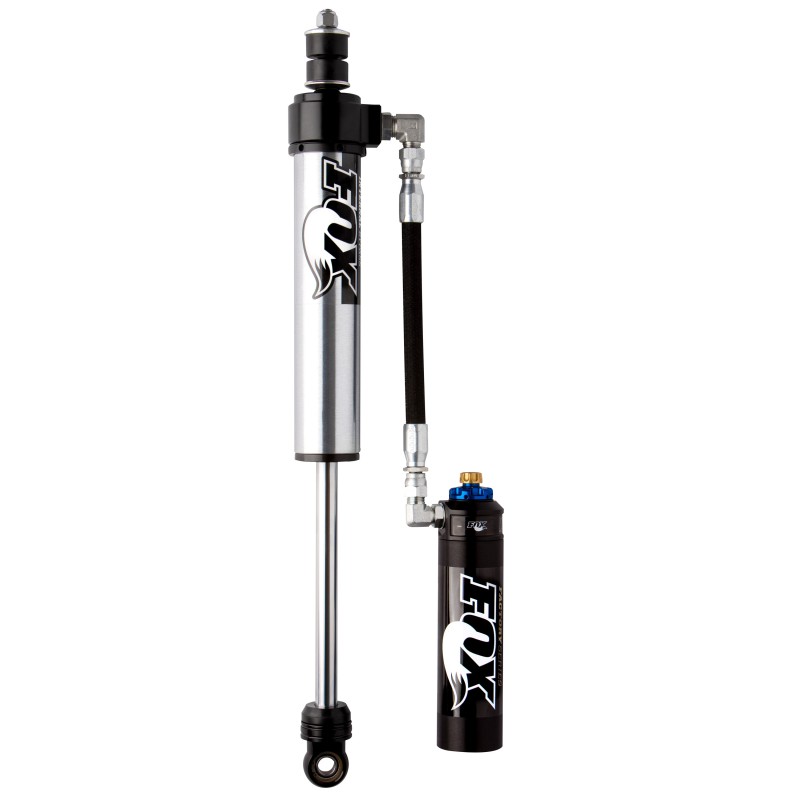

Shock Absorber for 2007-2018 Jeep Wrangler JK 2WD/4WD 2.5-4'' Front Lift FOX

883-06-068 FOX Shock Absorber


Extended length, in. :25.97 Inch
Collapsed length, in. :15.61 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; 2.5 Factory Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; Limited One Year Warranty; Dual Speed Compression (DSC) Adjustment For High And Low Speed Dampening; Without Shock Absorber Boots; Silver Shock Body With Black Reservoir; Set Of 2
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 25.97 Inch Compressed Length (IN): 15.61 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Silver Quantity: Set Of 2 Universality: Vehicle Specific Rod Diameter (IN): 7/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 1 The 2.5 Factory Series Internal Bypass shock delivers patented race-dominating position sensitive damping technology and performance in a hassle free bolt-on kit. Patented, position sensitive internal bypass technology contains internal passages that allow fluid to bypass the piston through regulated ports as it moves through the travel. They allow for a plush predictable ride over normal off-road driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on with your aftermarket long-arm suspension lift kit. Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels. Large 2.5 Inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. The 2.5 Factory Series Internal Bypass shocks utilizing all of the same components from our race winning Trophy Truck shocks with stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals. Features & Benefits Smooth Bore And Honed Seamless Alloy Body Zinc-Plated For Long Lasting Finish Components - Black Anodized, CNC-Machined 6061-T6 Billet Aluminum Stainless Steel Hard-Chrome Plated Shaft 6061-T6 Hard-Anodized, High Flow Aluminum Piston Application Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-081_REV_A.pdf https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_OR_INT-Bypass_Exploded_A.pdf
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 25.97 Inch, Compressed Length (IN): 15.61 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Set Of 2, Universality: Vehicle Specific, Rod Diameter (IN): 7/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 1]
