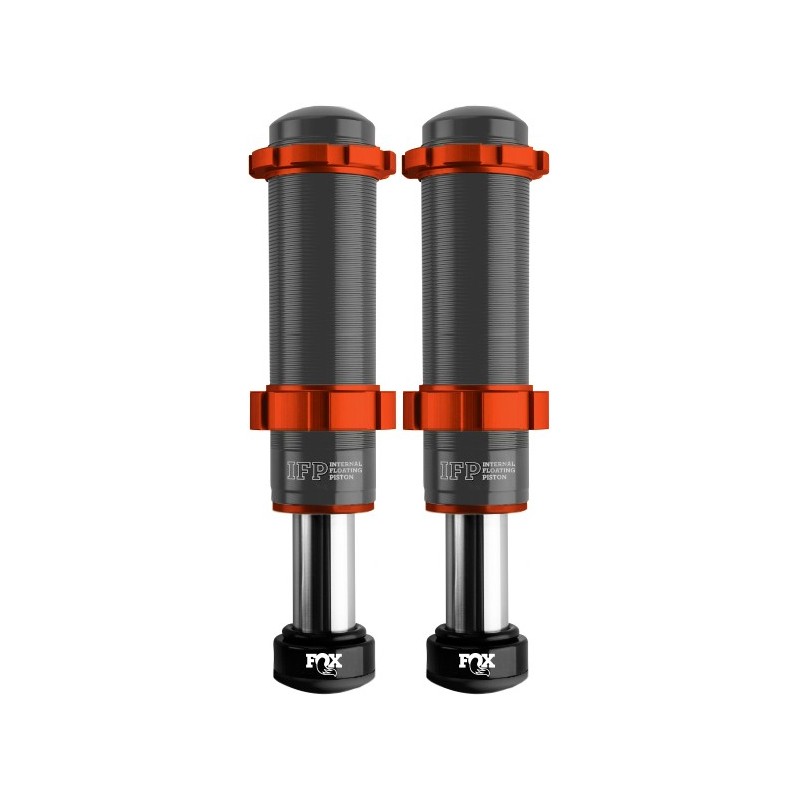

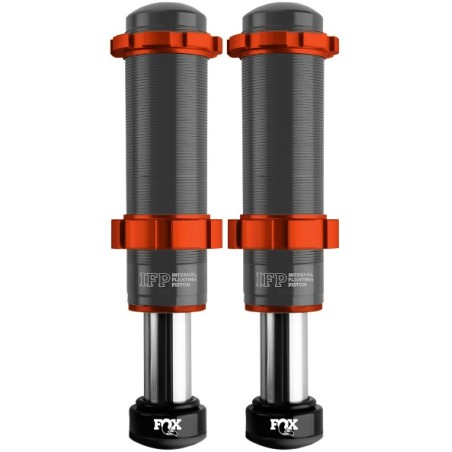

Bump Stop for 2014-2018 Jeep Wrangler JK 0'' Rear FOX

883-02-155 FOX Bump Stop


Extended length, in. :10.037 Inch
Collapsed length, in. :8.183 Inch
Bump Stop; 2.0 Factory Series; Bolt On; Hydraulic; Conical; 10.037 Inch Extended Height; 8.183 Inch Compressed Height; 1.854 Inch Travel; Aluminum; Set Of 2
Attributes Type: Hydraulic Shape: Conical Extended Length (IN): 10.037 Inch Compressed Length (IN): 8.183 Inch Color: Black Attachment Type: Bolt-On Quantity: Set Of 2 Inspired by it's off-road racing predecessors, the new Factory Race Series bump stop combines race proven technology with new, cutting-edge features to provide increased damping performance and bottom out control in the last few inches of suspension travel. The threaded body allows you to adjust the mounting height to fine-tune when the bump stop engages during up travel, preventing harsh bottom outs. An Internal Floating Piston (IFP) in the shaft separates the oil and nitrogen to prevent cavitation and bucking while the negative coil spring softens initial impacts and harsh top outs. The integrated FOX AIR VALVE (FAV) is located at the bottom of the shaft for easy access and is protected by the replaceable strike pad. Features & Benefits Shaft: Hard Chrome Plated 1-1/4 Inch Steel With Internal Floating Piston (IFP) For Increased Damping Performance Piston: Heavy-Duty Powdered Steel Valving : Unable, Velocity Sensitive Deburred Valve Shims Seals: Redundant Sealing Pack System, Main Seal, Wiper Seal, Scraper Seal Oil: JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Adjustments Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-151-REV_A.pdf
[Type: Hydraulic, Shape: Conical, Extended Length (IN): 10.037 Inch, Compressed Length (IN): 8.183 Inch, Color: Black, Attachment Type: Bolt-On, Quantity: Set Of 2]
