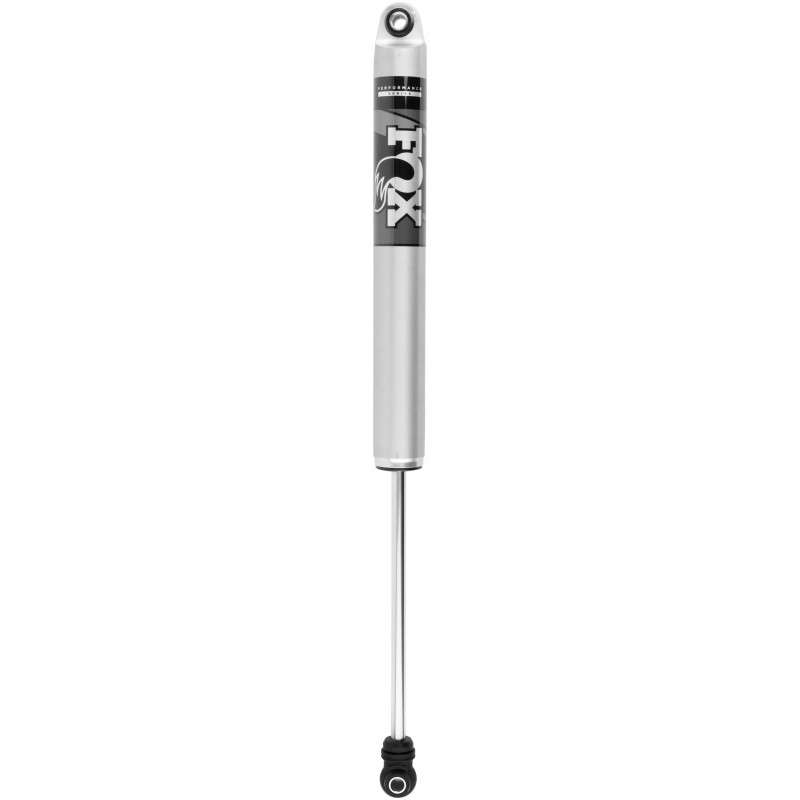

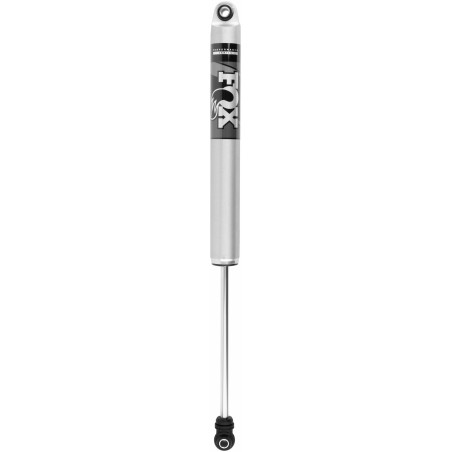

Shock Absorber for 2020-2023 Jeep Gladiator JT 4.5-6'' Rear Lift FOX

985-24-222 FOX Shock Absorber


Extended length, in. :31.89 Inch
Collapsed length, in. :19.7 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; 2.0 Performance Series; Hydraulic/ Nitrogen Gas Charged; Without Remote Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 31.89 Inch Compressed Length (IN): 19.7 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Non Adjustable Valving Rod Material: Steel Body Material: Aluminum With Reservoir: No Includes Dust Shield: No Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5 The precision metal impact aluminum body increases cooling capacity and will never rust. Inside you will find our race-proven performance valving technology our internal floating piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. The race developed high flow damping piston matched with application specific valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions. Features & Benefits CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time Internal IFP Mono-Tube Reservoir Design Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Quiet Nitrile Rubber Allows For Increased Suspension Articulation Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSIFP_Exploded_A.pdf
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 31.89 Inch, Compressed Length (IN): 19.7 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Non Adjustable Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: No, Estimated Install Time (Hours): 0.5]
