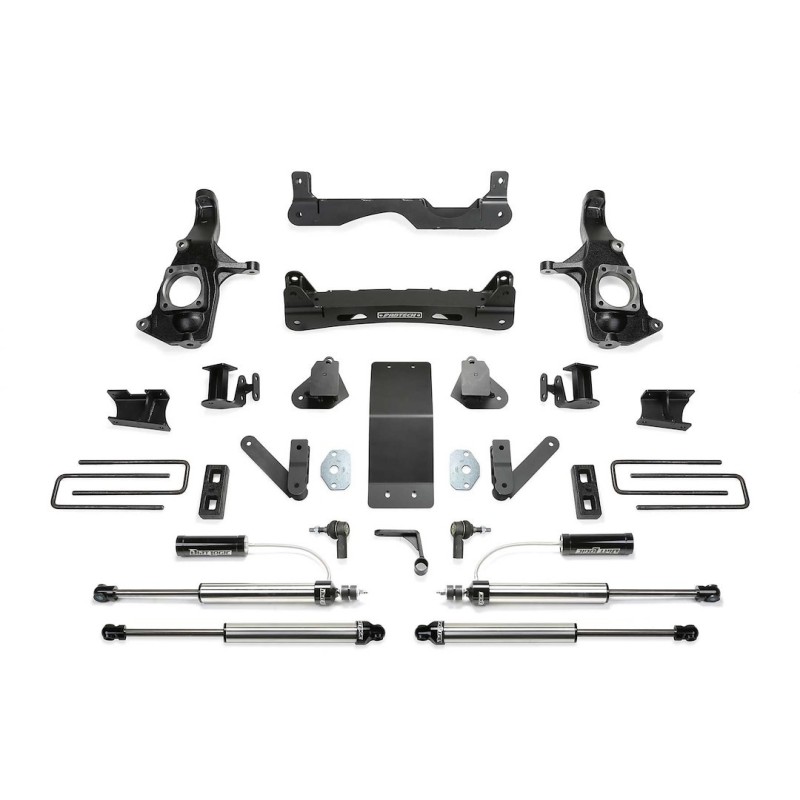

Lift Kit for 2011-2019 GMC Sierra 3500 HD 2WD/4WD 4'' Front and Rear

K1124DL Fabtech Lift Kit Suspension
For [4.0] '' Lift
[Full Front and Rear]
Lift Kit Suspension; Dirt Logic 2.25; 4 Inch Front Lift; 4 Inch Rear Lift; With Front Dirt Logic 2.25 Remote Reservoir And Rear Dirt Logic 2.25 Shock Absorbers In Kit; Black Components/ Silver Shock Absorbers; With Front Steering Knuckles/ Front and Rear Crossmembers/ Rear Lift Blocks/ U Bolts/ Tie Rod Ends/ Installation Hardware
Attributes Front Lift Amount (IN): 4 Inch Rear Lift Amount (IN): 4 Inch Front Lift Type: Steering Knuckles Rear Lift Type: Blocks And U-Bolts Maximum Tire Size: 35 x 13.50 Shock Type: Hydraulic Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 18 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Dirt Logic 2.25 ™s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping. Features & Benefits Heavy-Duty Construction And Design Features For A Robust Suspension Upgrade Features High Arched Lower Control Arm Crossmembers Constructed Of 1/4 Inch Thick Steel For Maximum Strength Ductile Iron Steering Knuckles Retain The Near Stock Track Width Keeping Tires Under The Fender For A Clean Appearance Rear Lift Is Accomplished With A Block And U Bolt Configuration Limited Lifetime Warranty


[Front Lift Amount (IN): 4 Inch, Rear Lift Amount (IN): 4 Inch, Front Lift Type: Steering Knuckles, Rear Lift Type: Blocks And U-Bolts, Maximum Tire Size: 35 x 13.50, Shock Type: Hydraulic, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 18, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS21230 (F37 FTS21230); Quantity Required: 1; Lift Kit Component; Component For K1121/ K1121M/ K1121DL/ K1122DL/ K1125/ K1123M/ K1123DL/ K1124DL}
, {Fabtech Motorsports FTS21231 (F37 FTS21231); Quantity Required: 1; Lift Kit Component; Component For K1121/ K1121M/ K1121DL/ K1122DL/ K1125/ K1123M/ K1123DL/ K1124DL}
, {Fabtech Motorsports FTS21245 (F37 FTS21245); Quantity Required: 1; Lift Kit Component; Component For K1127/ K1123M/ K1123DL/ K1124DL}
, {Fabtech Motorsports FTS801262D (F37 FTS801262D); Quantity Required: 1; Lift Kit Component; Component For K1122DL/ K1124DL}
, {Fabtech Motorsports FTS801262P (F37 FTS801262P); Quantity Required: 1; Lift Kit Component; Component For K1122DL/ K1124DL}
, {Fabtech Motorsports FTS810942 (F37 FTS810942); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
