Leveling Kit for 2011-2019 GMC Sierra 2500 HD 2WD/4WD 3.5'' Front

K1065DL Fabtech Leveling Kit Suspension
For [3.5] '' Lift
[Front]

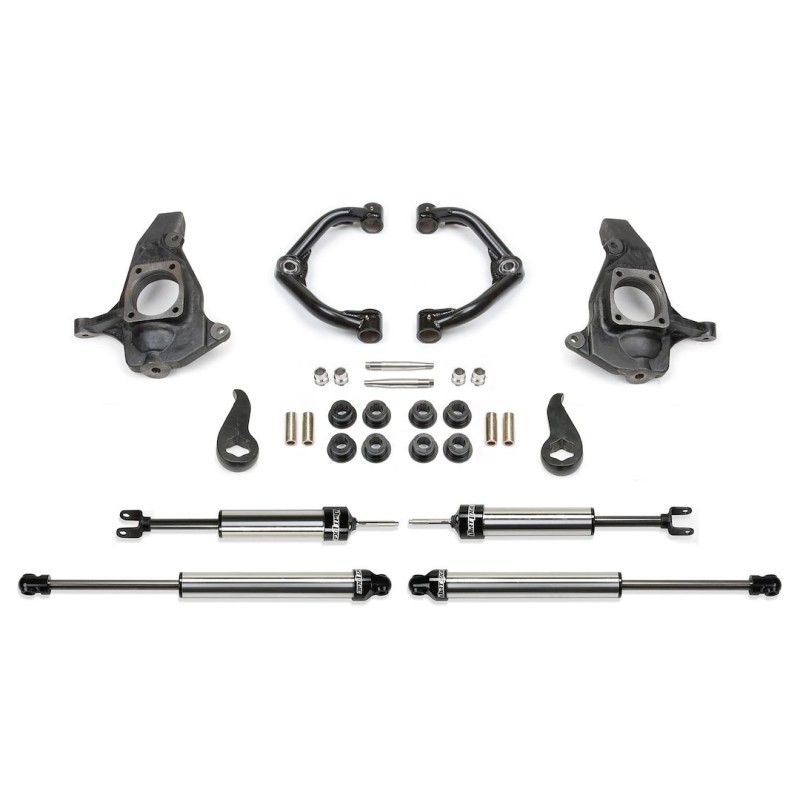

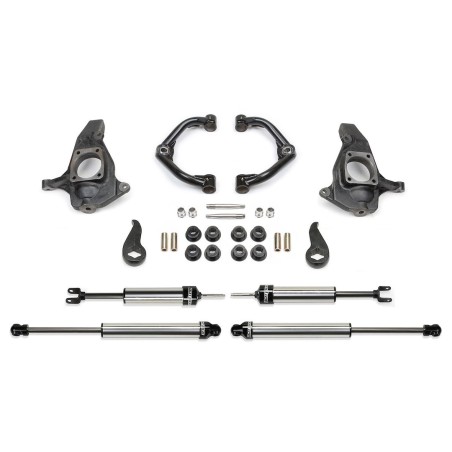

Leveling Kit Suspension; Dirt Logic SS; 3-1/2 Inch Lift; Torsion Keys; With Front And Rear Dirt Logic SS Shock Absorbers/ Uniball Upper Control Arms/ Torsion Keys/ Front Spindles/ Installation Hardware
Attributes Amount Raised Or Lowered: 4 Inch Lift Type: Torsion Bar Key Maximum Tire Size: 35 x 13.50 Includes Shock/Struts: Yes Minimum Wheel Diameter: 18 Wheel Backspacing (IN): 5.75 Wheel Offset (MM): 19 Color: Silver Material: Stainless Steel Estimated Install Time (Hours): 2 The 3-1/2 Inch System is available with our Uniball Upper Control Arms that feature 0.120 Inch wall 4130 Chromoly tubing with a 1-1/2 Inch OD 1 Inch FK Stainless PTFE Uniballs for 9 Inch of front wheel travel. The system also includes heavy-duty ductile iron steering knuckles and forged adjusting torsion bar keys to provide the proper amount of lift without CV bind. This system will level the stance of the vehicle compared to the factory nose down rake with no change to the rear suspension. Features & Benefits Upper Control Arms Built With Same Materials Found On Trophy Trucks Heat Treated 17-4 Stainless Steel Tapered Uniball Pins Ductile Iron Steering Knuckles Forged Torsion Bar Keys Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/K1065DL.pdf
[Amount Raised Or Lowered: 4 Inch Lift, Type: Torsion Bar Key, Maximum Tire Size: 35 x 13.50, Includes Shock/Struts: Yes, Minimum Wheel Diameter: 18, Wheel Backspacing (IN): 5.75, Wheel Offset (MM): 19, Color: Silver, Material: Stainless Steel, Estimated Install Time (Hours): 2]

Kit components:
{Fabtech Motorsports FTS21202 (F37 FTS21202); Quantity Required: 1; Lift Kit Component; Component For K1065DL}
