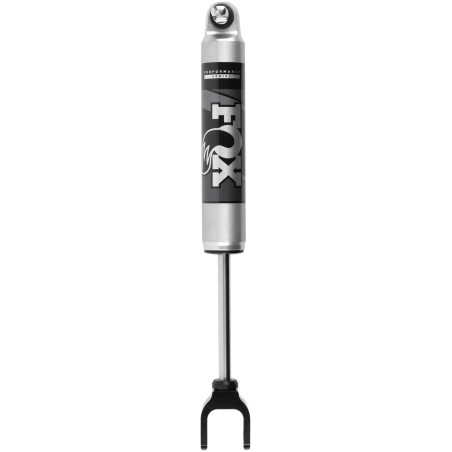

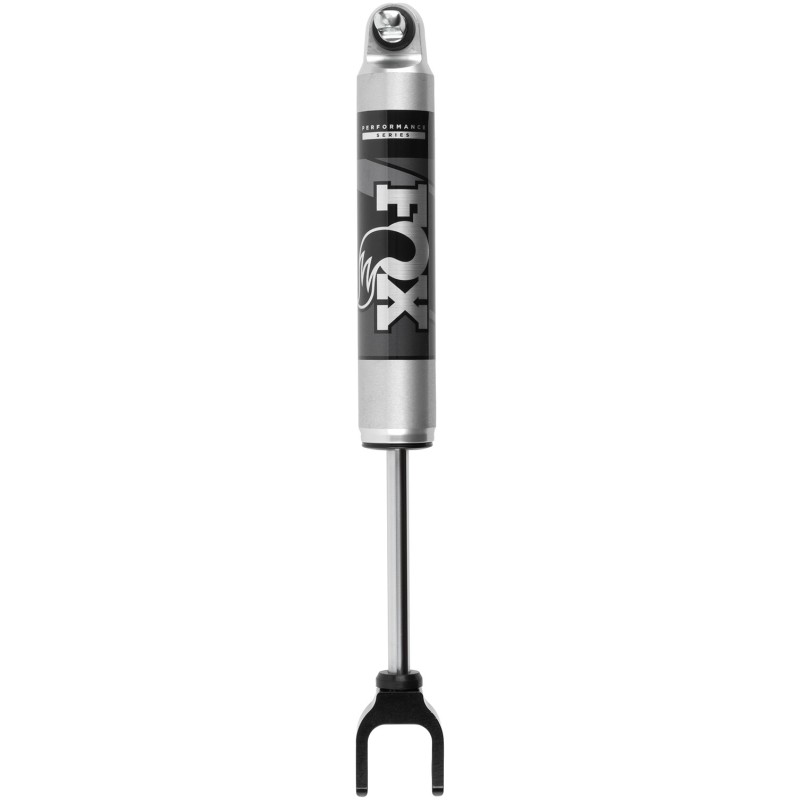

Shock Absorber for 2011-2019 GMC Sierra 2500 HD 2WD/4WD 4-9'' Front Lift FOX

980-24-967 FOX Shock Absorber


Extended length, in. :25.6 Inch
Collapsed length, in. :16.66 Inch
Upper mount: Cross Pin
Lower Mount: Clevis
Shock Absorber; Performance Series; Hydraulic/ Nitrogen Gas Charged Mono Tube; 1 Year Factory Warranty; Non Adjustable; Without Boots; Single
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 25.6 Inch Compressed Length (IN): 16.66 Inch Upper Mounting Style: Cross Pin Lower Mounting Style: Clevis Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 The 2.0 Performance Series Shocks delivers race-dominating performance in a hassle free bolt-on package. Their heat-reducing design includes a metal-impacted aluminum shock body that dissipates heat faster than conventional steel. Inside the Internal Floating Piston (IFP) separates shock oil from a high-pressure nitrogen gas chamber that provides a predicable ride quality capable of handling the roughest road conditions. Combine these new technologies with a competitive price for a winning combination. Features & Benefits Packed With 35 Years Of Race Winning Technology Performance Tuned For Vehicle Specific Application Aluminum Body Dissipates Heat Faster Than Steel. Black Anodized CNC Machined Aluminum Components IFP Separates Oil From High-Pressure Nitrogen Gas 100 Percent Serviceable And Tunable For Longer Lifespan Nitrile Bushings Allow For Incread Articulation Redundant Sealing System, Long Lasting Performance Limited 1 Year Factory And 90 Day Valving Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSIFP_Exploded_A.pdf
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 25.6 Inch, Compressed Length (IN): 16.66 Inch, Upper Mounting Style: Cross Pin, Lower Mounting Style: Clevis, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
