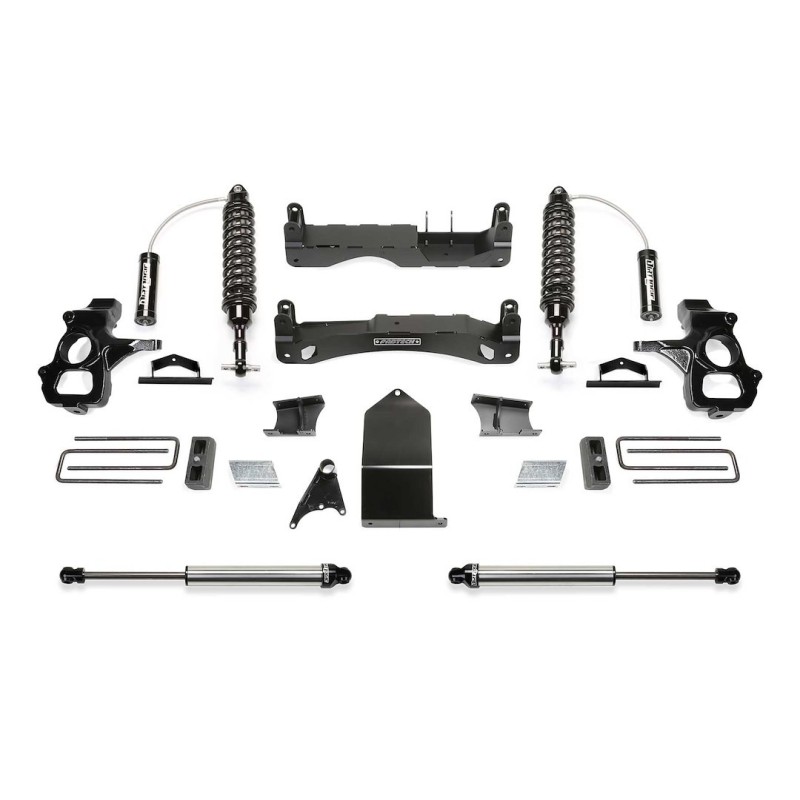

Lift Kit for 2014-2018 GMC Sierra 1500 2WD/4WD 4'' Front and Rear

K1117DL Fabtech Lift Kit Suspension
For [4.0] '' Lift
[Full Front and Rear]
Lift Kit Suspension; Dirt Logic 2.5 ™; 4 Inch Front Lift; 4 Inch Rear Lift; With Front Dirt Logic 2.5 Remote Reservoir Coil Over And Rear Dirt Logic Shock Absorbers In Kit; Black Components/ Stainless Steel Shocks; With Front And Rear Cross Members/ Steering Knuckles/ Rear Lift Blocks And U Bolts/ Rear Shock Absorber Mounts/ Installation Hardware
Attributes Front Lift Amount (IN): 4 Inch Rear Lift Amount (IN): 4 Inch Front Lift Type: Coil Spring Rear Lift Type: Blocks And U-Bolts Maximum Tire Size: 33 x 12.50 Shock Type: Gas Charged Wheel Backspacing (IN): 4.50 Minimum Wheel Diameter: 17 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Fabtech's Performance systems utilize their proven heavy-duty construction and design features found in their 6 Inch systems but with less lift for use with 33 Inch tall tires. These 4 Inch systems feature high arched lower control arm crossmembers constructed of 1/4 Inch thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration. The Performance System features Dirt Logic Stainless Steel 2.5 Resi Coilover front shocks and Dirt Logic Stainless Steel 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty


[Front Lift Amount (IN): 4 Inch, Rear Lift Amount (IN): 4 Inch, Front Lift Type: Coil Spring, Rear Lift Type: Blocks And U-Bolts, Maximum Tire Size: 33 x 12.50, Shock Type: Gas Charged, Wheel Backspacing (IN): 4.50, Minimum Wheel Diameter: 17, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS21226 (F37 FTS21226); Quantity Required: 1; Lift Kit Component; Component For K1116/ K1117/ K1119/ K1120}
, {Fabtech Motorsports FTS21228 (F37 FTS21228); Quantity Required: 1; Lift Kit Component; Component For K1116/ K1117}
, {Fabtech Motorsports FTS21236 (F37 FTS21236); Quantity Required: 1; Lift Kit Component; Component For K1117DL/ K1120DL}
, {Fabtech Motorsports FTS810152 (F37 FTS810152); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
