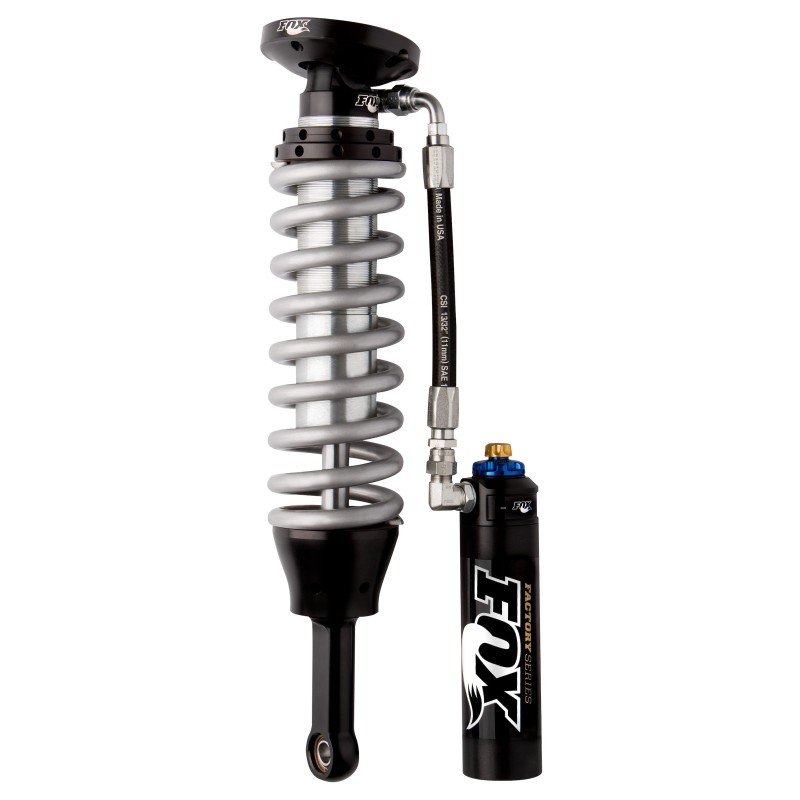

Coil Over Shock Absorber for 2007-2018 GMC Sierra 1500 2WD/4WD 0-2'' Front Lift

883-06-121 FOX Coil Over Shock Absorber
For [0.0, 0.25, 0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2.0] '' Lift

Extended length, in. :18.900 Inch
Collapsed length, in. :15.020 Inch
Upper mount: Stud
Lower Mount: Eyelet
Coil Over Shock Absorber; 2.5 Factory Series; Dual Speed Compression (DCS) Adjustable Valving; Ride Height Adjustable 0 To 2 Inch Lift; 18.900 Inch Extended Height/ 15.020 Compressed Height; Single Flat End Coil Spring; Zinc; With External Reservoir; Set Of 2
Attributes Adjustable: Yes Valving Type: Dual Speed Compression (DCS) Adjustable Valving Shock Type: Hydraulic Upper Mounting Type: Stud Lower Mounting type: Eyelet Front/Rear Drop (IN): 0 To 2 Inch Lift Extended Height (IN): 18.900 Inch Compressed Height (IN): 15.020 Inch Shock Body Color: Black/ Silver Shock Body Material: Steel Quantity: Set Of 2 Spring Height (IN): Application Specific Spring Rate: Not Applicable Spring Style: Single Flat End Coil Spring Spring Finish: Powder Coated Spring Color: Silver Spring Material: Steel Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Factory Series Coil-over Reservoir shocks provide improved damping in any terrain. Coil-over shocks provide suspension damping and suspend the weight of the vehicle. Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-overs Reservoir shocks deliver. Features & Benefits 2.5 Inch Smooth Bore And Honed Seamless Alloy Body Zinc-Plated And Double-Clear Coated For Long Lasting Finish. 2.5 Inch Smooth Bore 6061-T6 Aluminum Is Hard Anodized Black Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Components Application Specific, Adjustable 3.0 Eibach® Racing Springs. 7/8 Inch Hardened NitroSteel® Steel Carbon Shafts 6061-T6 Hard-Anodized, High Flow Aluminum Piston. Application Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal. PTFE-Lined, Heat-Treated, Alloy Steel Spherical JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Limited 1 Year Factory Warranty And Limited 90 Day Valving Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-066_REV_F.pdf https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.5Reservoir_Exploded_A.pdf
[Adjustable: Yes, Valving Type: Dual Speed Compression (DCS) Adjustable Valving, Shock Type: Hydraulic, Upper Mounting Type: Stud, Lower Mounting type: Eyelet, Front/Rear Drop (IN): 0 To 2 Inch Lift, Extended Height (IN): 18.900 Inch, Compressed Height (IN): 15.020 Inch, Shock Body Color: Black/ Silver, Shock Body Material: Steel, Quantity: Set Of 2, Spring Height (IN): Application Specific, Spring Rate: Not Applicable, Spring Style: Single Flat End Coil Spring, Spring Finish: Powder Coated, Spring Color: Silver, Spring Material: Steel]
