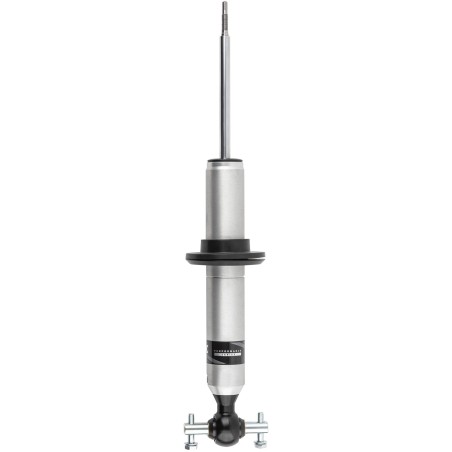

Coil Over Shock Absorber for 2020-2021 GMC Sierra 1500 4WD 0-2'' Front Lift FOX

985-62-012 FOX Coil Over Shock Absorber


Extended length, in. :23.9 Inch
Collapsed length, in. :18.6 Inch
Upper mount: Stud
Lower Mount: Cross Pin
Coil Over Shock Absorber; Performance Series; Hydraulic/ Nitrogen Gas Charged; Without Remote Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single; Must Re-Use OE Coil Spring
Attributes Adjustable: No Valving Type: Application Specific Valving Shock Type: Hydraulic/ Nitrogen Gas Charged Upper Mounting Type: Stud Lower Mounting type: Cross Pin Front/Rear Drop (IN): 0 To 2 Inch Extended Height (IN): 23.9 Inch Compressed Height (IN): 18.6 Inch Shock Body Color: Black Shock Body Material: Aluminum Quantity: Single Spring Color: Silver Our performance series 2.0 coil-over snap ring IFP shock is a bolt-on solution, loaded with a long list of features that set it apart. This Comes With a new custom-molded spring seat, allowing you to reuse your stock spring and mounting hardware, while providing excellent on- and off-road performance at an affordable price point. The precision, impact-extruded aluminum body is lightweight and rust resistant. Inside the shock is an internal nitrogen-charged gas reservoir, contained by an internal floating piston (IFP) which separates the charged gas from the shock oil. The IFP eliminates oil from mixing with the nitrogen as is possible with the stock twin tube shocks, allowing maximum performance from the factory-tuned precision valving. Three predetermined preload settings allow a choice of 0 inch, 1 inch or 2 inch of lift. The easy-to-install performance series 2.0 coil-over snap ring IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions. Features & Benefits 2 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time Clear-Anodized For A Durable Finish Internal IFP Mono-Tube Reservoir Design Separates Shock Oil From The High-Pressure Nitrogen Race-Developed High-Flow Piston Design Easy-To-Install Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-269_REV_A-color.pdf
[Adjustable: No, Valving Type: Application Specific Valving, Shock Type: Hydraulic/ Nitrogen Gas Charged, Upper Mounting Type: Stud, Lower Mounting type: Cross Pin, Front/Rear Drop (IN): 0 To 2 Inch, Extended Height (IN): 23.9 Inch, Compressed Height (IN): 18.6 Inch, Shock Body Color: Black, Shock Body Material: Aluminum, Quantity: Single, Spring Color: Silver]
