Lift Kit for 2004-2012 GMC Canyon 2WD 1.5'' Front and Rear

69-3075 ReadyLift Lift Kit Suspension
For [1.5] '' Lift
[Full Front and Rear]

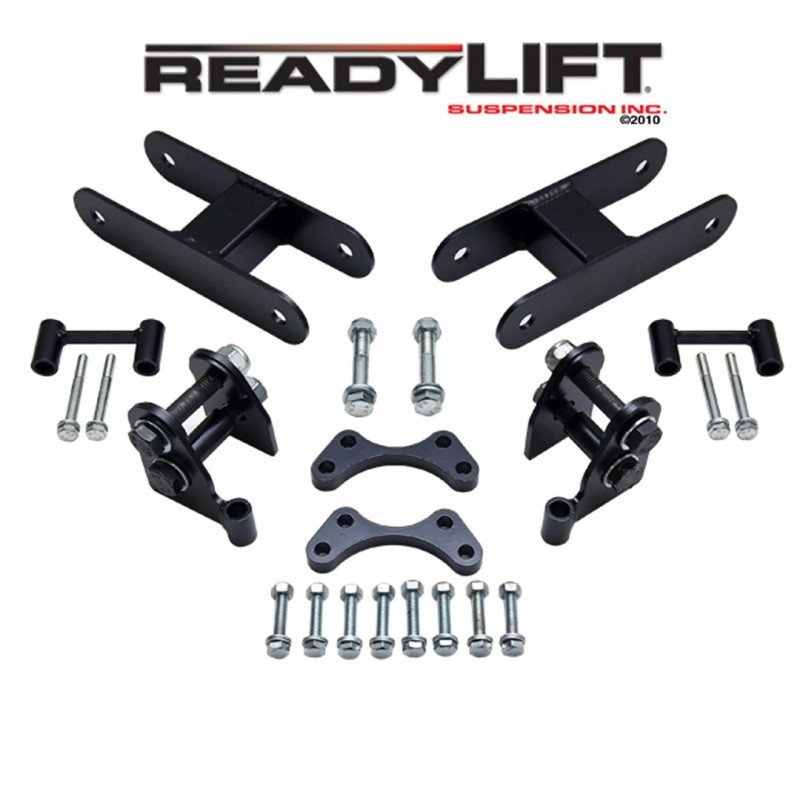

Lift Kit Suspension; SST ® Series; 2-1/2 Inch Front Lift; 1-1/2 Inch Rear Lift; Without Shock Absorbers In Kit - Shock Change Not Necessary; Black Components; Includes 2 Lower Strut Extensions/ 2 Upper Ball Joint Spacers/ 2 Rear Leaf Spring Shackles/ 2 Rear Shock Extensions/ Hardware
Attributes Front Lift Amount (IN): 2-1/2 Inch Rear Lift Amount (IN): 1-1/2 Inch Front Lift Type: Strut Assembly Spacer Rear Lift Type: Leaf Spring Shackle Maximum Tire Size: 31 x 10.50 Shock Type: Without Shocks Wheel Backspacing (IN): 4.50 Minimum Wheel Diameter: OEM Wheel Offset (MM): 0 Shocks: Without Shock Absorbers In Kit - Shock Change Not Necessary Color: Black Components The 69-3075 SST Mild Lift Kit features unique design elements engineered around providing the proper lift without compromising the ride quality or the factory geometry. The kit includes a pair of steel lower strut extensions that bolt together and attach to the lower control arm and the lower strut mount to generate the 2-1/2 Inch of front lift. In addition to the lower strut extensions, this kit also includes 1/2 Inch plate steel upper ball joint spacers that install between the upper ball joint and the inside of the control arm to eliminate upper arm to coil spring contact during suspension cycling. To raise the rear of the 2WD Colorado or Canyon, ReadyLIFT engineered new rear leaf spring shackles which, when installed, will raise the rear of your truck 1-1/2 Inch. In addition, the rear system also includes steel rear upper shock mount extensions designed to keep the rear shock in the stock position and length which results in a factory ride and no need to buy new shocks. The 69-3075 is all-steel construction protected with a tough Powder Coated finish. Each kit comes complete with 10.9 class zinc-plated hardware and intuitive instructions detailing the steps required for installation. The 69-3075 lift kit allows for installation of up to 30 Inch tires. Features & Benefits All-Steel Construction Protected With A Tough Powder Coated Finish Providing The Proper Lift Retain Factory Ride Quality Kits Are Engineered And Sorted Out By Experts To Perform Properly Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/RDL/InstallationInstructions/69-3075_Installation_Instructions.pdf
[Front Lift Amount (IN): 2-1/2 Inch, Rear Lift Amount (IN): 1-1/2 Inch, Front Lift Type: Strut Assembly Spacer, Rear Lift Type: Leaf Spring Shackle, Maximum Tire Size: 31 x 10.50, Shock Type: Without Shocks, Wheel Backspacing (IN): 4.50, Minimum Wheel Diameter: OEM, Wheel Offset (MM): 0, Shocks: Without Shock Absorbers In Kit - Shock Change Not Necessary, Color: Black Components]
