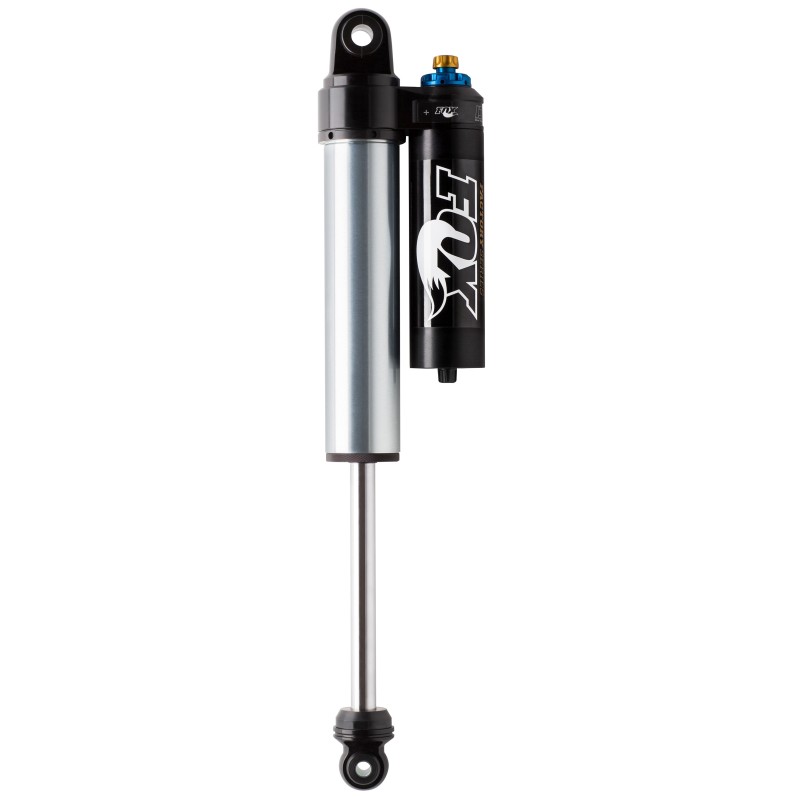

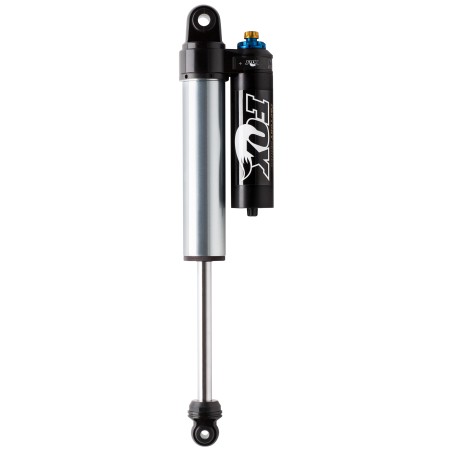

Shock Absorber for 2015-2022 GMC Canyon 4WD 0-1'' Rear Lift FOX

883-26-036 FOX Shock Absorber


Extended length, in. :22.89 Inch
Collapsed length, in. :14.85 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; 2.5 Factory Series; Hydraulic/ Nitrogen Gas Charged; With External Reservoir; 1 Year Factory Warranty; Adjustable Dual Speed Valving; 22.890 Extended Height/ 14.850 Compressed Height; ES7 Top Mount/ ES7 Bottom Mount; Without Shock Boot; Zinc; Set Of 2
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 22.89 Inch Compressed Length (IN): 14.85 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Silver Quantity: Set Of 2 Universality: Vehicle Specific Rod Diameter (IN): 7/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 1 Before any of our shocks reach production, they've had to stand the test of time and live up to incredible abuse by the fastest athletes in racing. We push the boundaries to give you that same precise control and race-proven performance you can feel. Our bolt-on Factory Series Coil-over Reservoir shocks provide improved damping in any terrain. Coil-over shocks provide suspension damping and suspend the weight of the vehicle. Dual Speed Compression (DSC) adjuster gives remarkable versatility and precise tuning. A simple twist of either two adjuster knobs allows twelve separate low-speed and ten high-speed compression levels. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Experience for yourself the incredible performance and precise control that Factory Series Coil-overs Reservoir shocks deliver. Features & Benefits Smooth Bore And Honed Seamless Alloy Body Zinc-Plated For Long Lasting Finish Components - Black Anodized, CNC-Machined 6061-T6 Billet Aluminum 6061-T6 Hard-Anodized, High Flow Aluminum Piston Application Specific Valving To Maximize Performance Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Limited 1 Year Factory Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-157_REV_A.pdf https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.5Reservoir_Exploded_A.pdf
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 22.89 Inch, Compressed Length (IN): 14.85 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Silver, Quantity: Set Of 2, Universality: Vehicle Specific, Rod Diameter (IN): 7/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 1]
