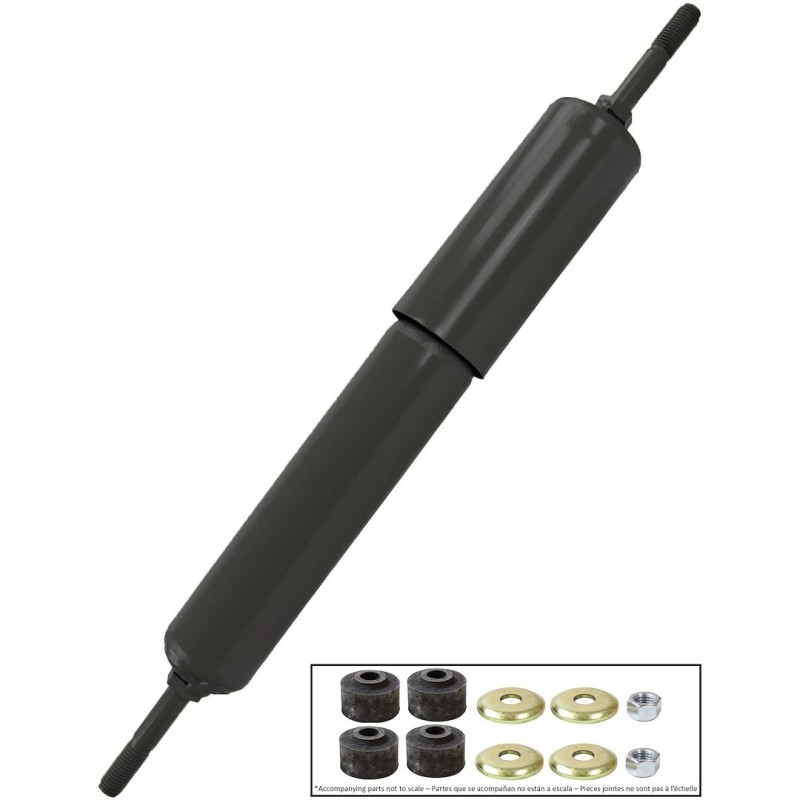

Shock Absorber for 2003-2009 GMC C4500 Topkick 0'' Rear Monroe

65173 Monroe Shock Absorber


Extended length, in. :17-3/4 Inch
Collapsed length, in. :11-1/8 Inch
Upper mount: Stud
Lower Mount: Stud
Shock Absorber; Magnum ™; OE Replacement; Nitrogen Gas Charged; Limited Lifetime Warranty; Non Adjustable Valving; Without Shock Boots; Yellow; Single
Attributes Type: Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 17-3/4 Inch Compressed Length (IN): 11-1/8 Inch Upper Mounting Style: Stud Lower Mounting Style: Stud Body Color: Yellow Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Multi Stage High Displacement Valving Rod Material: Steel Body Material: Steel With Reservoir: No Includes Dust Shield: Yes Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 Gas-Magnum truck shock absorbers provide firm control without a harsh ride. Features & Benefits All Weather Fluid: Contains Special Modifiers To Reduce Friction And Ensure Smooth Rod Reaction Full Displaced Valving: Better Valving Range On Both The Compression And Extension Cycles Of The Unit For A Smooth Comfortable Ride Sintered Iron Piston: Stronger Than Traditional Metals, Enhances Durability For Longer Service Life Nitrogen Gas Charged: For Improved Ride And Handling, Helps Maintain Tire To Road Contact By Reducing Aeration 2 Inch Reserve Tube: More Fluid For More Consistent Performance, Greater Oil Capacity To Better Dissipation Of Heat Compared To OE 1-3/8 Inch Bore: Lower Operating Pressure Than Standard 1 Inch Bore Units, Work More Efficiently With Less Effort Up To Twice The Fluid Capacity Of Standard 1 Inch Bore Shocks 5/8 Inch Piston Rod: Heavy Duty Nitrocarburized Rod For Long Service Life Special Seal: Self-Lubricating Fluid Seal Designed To Retain Gas Without Excessive Wear Or Friction Designed For Mid To Full-Size Light-Duty Work Trucks And Vans Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/MON/TechnicalBulletins/TITAN SAF 5004 NA 200.pdf
[Type: Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 17-3/4 Inch, Compressed Length (IN): 11-1/8 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Stud, Body Color: Yellow, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Multi Stage High Displacement Valving, Rod Material: Steel, Body Material: Steel, With Reservoir: No, Includes Dust Shield: Yes, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
