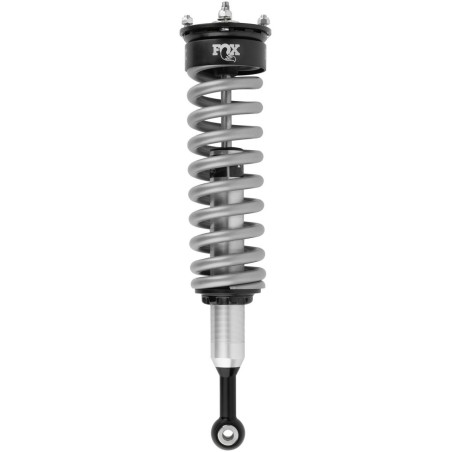

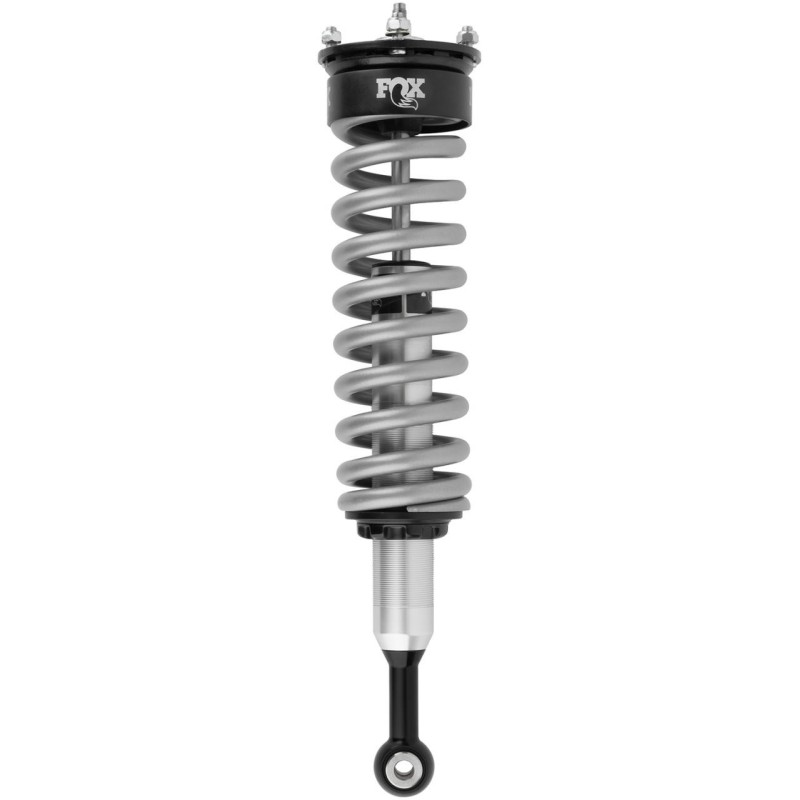

Coil Over Shock Absorber for 2019-2023 Ford Ranger 2-3'' Front Lift

985-02-148 FOX Coil Over Shock Absorber
For [2.0, 2.25, 2.5, 2.75, 3.0] '' Lift

Extended length, in. :20.43 Inch
Collapsed length, in. :16.04 Inch
Upper mount: Strut
Lower Mount: Eyelet
Coil Over Shock Absorber; 2.0 Performance Series; Non Adjustable Valving; Ride Height Adjustable 2 To 3 Inch Lift; Single Flat End Coil Spring; Zinc; Single
Attributes Adjustable: No Valving Type: Application Specific Valving Shock Type: Nitrogen Gas Charged Upper Mounting Type: Strut Lower Mounting type: Eyelet Front/Rear Drop (IN): 2 To 3 Inch Front Extended Height (IN): 20.43 Inch Compressed Height (IN): 16.04 Inch Shock Body Color: Silver Shock Body Material: Aluminum Quantity: Single Spring Color: Silver Includes Mounting Hardware: No Bolt-on, Performance Series Coil-over IFP shock is loaded with advanced technology and a long list of features that set it apart. The precision, metal impact extruded aluminum body increases cooling capacity and is rust resistant. The vehicle-specific upper mount features a composite bushing that isolates noise and vibration. Locking, spring preload rings that allow easy ride height and preload adjustment retain a top quality racing coil, selected to deliver the optimal spring rate. Performance Series Coil-Over IFP shocks bolt on with no modifications and are designed to level your truck front-to-rear. Applications are available for stock and lifted trucks that re-use the stock shock. Inside is an internal reservoir with Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned, precision valving. The easy-to-install, Performance Series 2.0 Coil-over IFP provides a comfortable on-road ride and predictable off-road handling in even the toughest conditions. Features & Benefits Components Are Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Shaft Constructed From 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Internal IFP Mono-Tube Reservoir Design Body Plating: Clear-Anodized For A Durable Finish Race-Developed High-Flow Piston Design Application Specific Valving To Maximize Performance Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-258_REV_B.pdf
[Adjustable: No, Valving Type: Application Specific Valving, Shock Type: Nitrogen Gas Charged, Upper Mounting Type: Strut, Lower Mounting type: Eyelet, Front/Rear Drop (IN): 2 To 3 Inch Front, Extended Height (IN): 20.43 Inch, Compressed Height (IN): 16.04 Inch, Shock Body Color: Silver, Shock Body Material: Aluminum, Quantity: Single, Spring Color: Silver, Includes Mounting Hardware: No]
