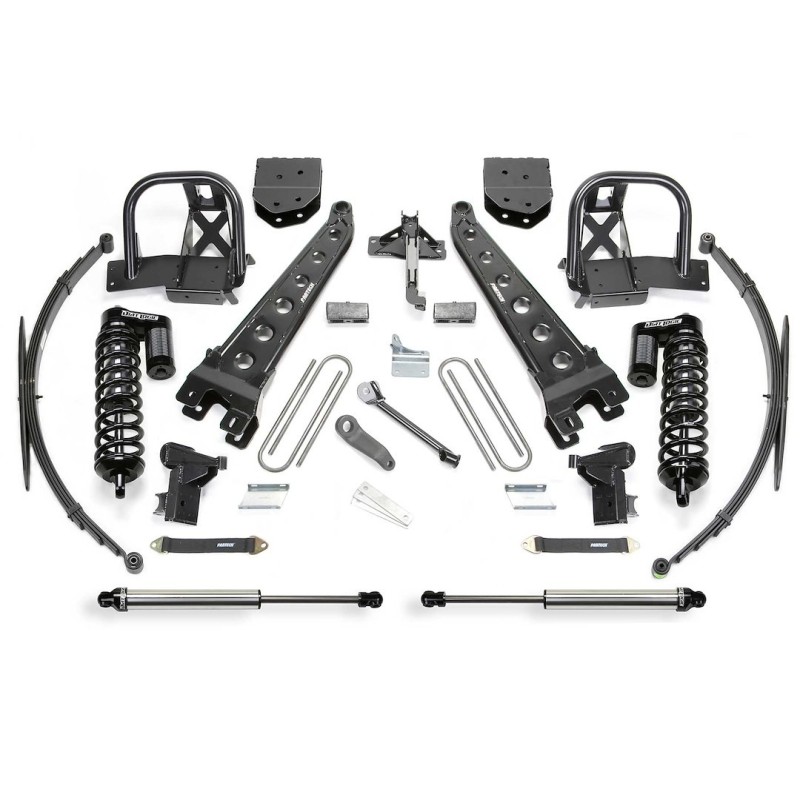

Lift Kit for 2011-2011 Ford F-450 Super Duty 4WD Front and Rear

K2153DL Fabtech Lift Kit Suspension

[Full Front and Rear]
Lift Kit Suspension; Dirt Logic SS; 10 Inch Front Lift; 10 Inch Rear Lift; With Front Dirt Logic SS 4.0 Coil Over Shock Absorbers External Reservoir And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; With Coil Over Conversion Mounts/ Rear Leaf Springs/ Lift Blocks And U Bolts/ Radius Arms/ Pitman Arm/ Track Bar Bracket/ Stabilizer Bar Drop/ Installation Hardware
Attributes Front Lift Amount (IN): 10 Inch Rear Lift Amount (IN): 10 Inch Front Lift Type: Coil Over Shock Absorber Rear Lift Type: Leaf Spring Block Maximum Tire Size: 40 x 13.50 Shock Type: Hydraulic/ Nitrogen Gas Charged Wheel Backspacing (IN): 4.62 Minimum Wheel Diameter: 17 Wheel Offset (MM): -10 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift features a Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift features a replacement Leaf Springs. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT22108i.pdf
[Front Lift Amount (IN): 10 Inch, Rear Lift Amount (IN): 10 Inch, Front Lift Type: Coil Over Shock Absorber, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 40 x 13.50, Shock Type: Hydraulic/ Nitrogen Gas Charged, Wheel Backspacing (IN): 4.62, Minimum Wheel Diameter: 17, Wheel Offset (MM): -10, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22108 (F37 FTS22108); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K20371DB/ K20381DB/ K20461DB/ K20471DB/ K2149DB/ K2150DB/}
, {Fabtech Motorsports FTS22144 (F37 FTS22144); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2147DB/ 2149DB/ K2151DB/ K2153DB}
, {Fabtech Motorsports FTS22146 (F37 FTS22146); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2151DB/ K2152DB/ K2153DB/ K2154DB/ K2162DB}
, {Fabtech Motorsports FTS810652 (F37 FTS810652); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
, {Fabtech Motorsports FTS835012 (F37 FTS835012); Quantity Required: 2; Coil Over Shock Absorber; Dirt Logic; Non Adjustable 60 Percent Compression/ 40 Percent Rebound Valving; With}
