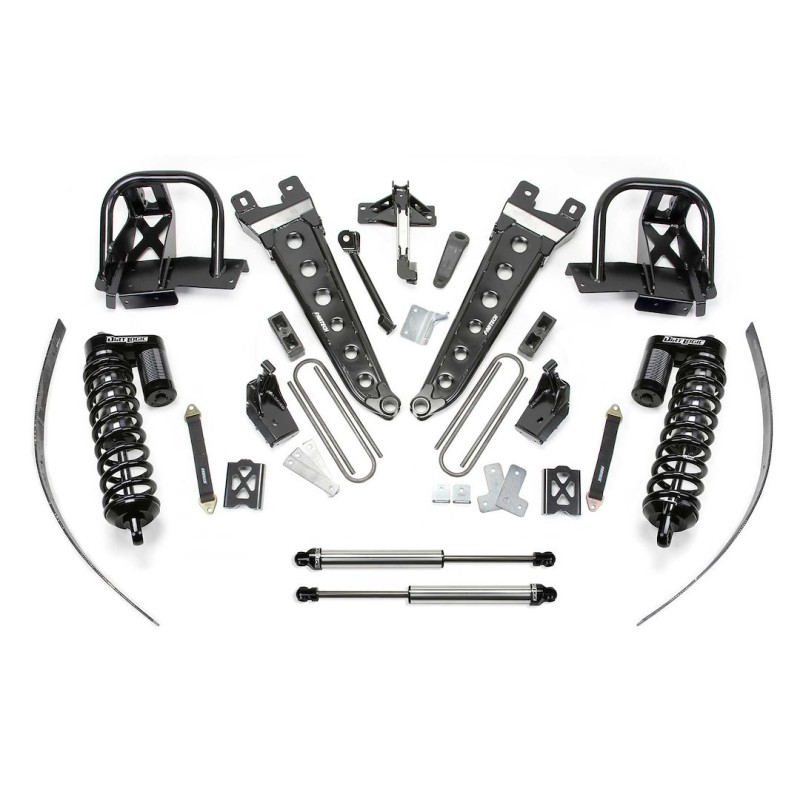

Lift Kit for 2011-2016 Ford F-250 Super Duty 4WD 8'' Front and Rear

K2140DL Fabtech Lift Kit Suspension
For [8.0] '' Lift
[Full Front and Rear]
Lift Kit Suspension; Dirt Logic SS; 8 Inch Front Lift; 8 Inch Rear Lift; With Front Dirt Logic SS 4.0 Coil Over Shock Absorbers External Reservoir And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; With Front Coil Over Mounts/ Radius Arms/ Add-A-Leaf/ Blocks And U Bolts/ Pitman Arm/ Stabilizer Bar Links/ Track Bar Brackets/ Installation
Attributes Front Lift Amount (IN): 8 Inch Rear Lift Amount (IN): 8 Inch Front Lift Type: Coil Over Shock Absorber Rear Lift Type: Leaf Spring Block Maximum Tire Size: 37 x 13.50 Shock Type: Hydraulic/ Nitrogen Gas Charged Wheel Backspacing (IN): 4.75 Minimum Wheel Diameter: 18 Wheel Offset (MM): -13 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift features a Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift features an add-a-leaf and a block and u-bolt kit. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT22078i.pdf
[Front Lift Amount (IN): 8 Inch, Rear Lift Amount (IN): 8 Inch, Front Lift Type: Coil Over Shock Absorber, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 37 x 13.50, Shock Type: Hydraulic/ Nitrogen Gas Charged, Wheel Backspacing (IN): 4.75, Minimum Wheel Diameter: 18, Wheel Offset (MM): -13, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22105 (F37 FTS22105); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K20341B/ K20341DB/ K20361B/ K20361DB/ K2122/ K2122DB/}
, {Fabtech Motorsports FTS22139 (F37 FTS22139); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2119/ K2119DB/ K2123/ K2123DB/ K2124/ K2124DB/ K2128/}
, {Fabtech Motorsports FTS22143 (F37 FTS22143); Quantity Required: 1; Lift Kit Component; Component Box; Component For Lift Kits K2135DB/ K2136DB/ K2137B/ K2137DB/ K2138B/ K2138DB/}
, {Fabtech Motorsports FTS810052 (F37 FTS810052); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
, {Fabtech Motorsports FTS835012 (F37 FTS835012); Quantity Required: 2; Coil Over Shock Absorber; Dirt Logic; Non Adjustable 60 Percent Compression/ 40 Percent Rebound Valving; With}
