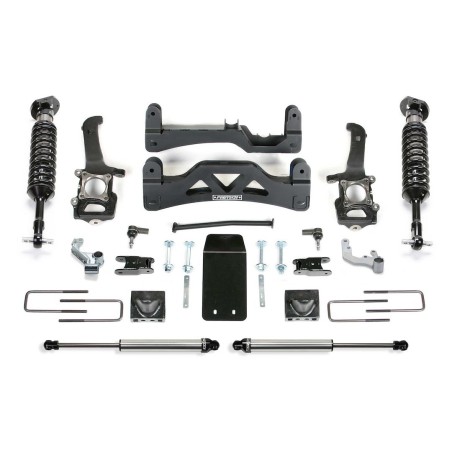

Lift Kit for 2009-2013 Ford F-150 4WD/4WD Front and Rear

K2191DL Fabtech Lift Kit Suspension

[Full Front and Rear]
Lift Kit Suspension; Dirt Logic SS; 6 Inch Front Lift; 6 Inch Rear Lift; With Front Dirt Logic SS 2.5 Coil Over Shock Absorbers And Rear Dirt Logic SS Shock Absorbers; Black Components/ Stainless Steel Shock Absorbers; With Steering Knuckles/ Crossmembers With Integrated Front Differential Skid Plate/ Lift Blocks/ U Bolts/ Leaf Spring Shackles/ Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 6 Inch Front Lift Type: Coil Over Shock Absorber Rear Lift Type: Leaf Spring Block Maximum Tire Size: 35 x 13.50 Shock Type: Hydraulic/ Nitrogen Gas Charged Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 18 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Silver Shock Absorbers Our new 2009 to 13 F150 GEN II system utilizes the proven designs from our 2014 system at an affordable price and fast install for the earlier model trucks. This system features a heavy-duty 1/4 Inch thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. Fabtech extended length ductile iron steering knuckles allow use of 18 Inch or 20 Inch wheels. The Performance GEN II System comes with Dirt Logic 2.5 Coilovers featuring cold wound coil springs in the front and Dirt Logic 2.25 in the rear for aggressive offroad driving. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT22172i.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 6 Inch, Front Lift Type: Coil Over Shock Absorber, Rear Lift Type: Leaf Spring Block, Maximum Tire Size: 35 x 13.50, Shock Type: Hydraulic/ Nitrogen Gas Charged, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 18, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Silver Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22173 (F37 FTS22173); Quantity Required: 1; Lift Kit Component; Component For Lift Kits K2190/ K2191DB}
, {Fabtech Motorsports FTS22175 (F37 FTS22175); Quantity Required: 1; Lift Kit Component; Component For Lift Kits K2190/ K2191DB}
, {Fabtech Motorsports FTS22198 (F37 FTS22198); Quantity Required: 1; Coil Over Shock Absorber; Dirt Logic 2.5; Non Adjustable 60 Percent Compression/ 40 Percent Rebound Valving; Without}
, {Fabtech Motorsports FTS810292 (F37 FTS810292); Quantity Required: 2; Shock Absorber; Dirt Logic; Nitrogen And Oil Charged; Without Remote Reservoir; One Year Warranty; Non Adjustable}
