Lift Kit for 2009-2013 Ford F-150 4WD/4WD Front and Rear

K2190M Fabtech Lift Kit Suspension

[Full Front and Rear]

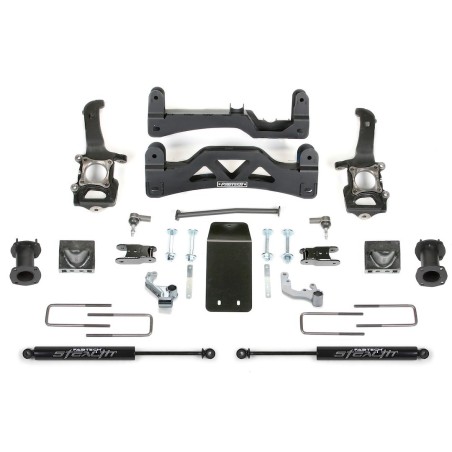

Lift Kit Suspension; Stealth Series; 6 Inch Front Lift; 6 Inch Rear Lift; With Rear Stealth Shock Absorbers; Black Components/ Black Shock Absorbers; With Front Strut Assembly Extensions/ Steering Knuckles/ Crossmembers With Integrated Front Differential Skid Plate/ Lift Blocks/ U Bolts/ Leaf Spring Shackles/ Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 6 Inch Front Lift Type: Strut Assembly Extension Rear Lift Type: Blocks And U-Bolts Maximum Tire Size: 35 x 13.50 Shock Type: Nitrogen Gas Charged Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 18 Wheel Offset (MM): 0 Shocks: With Shocks In Kit Color: Black Components/ Black Shock Absorbers Our new 2009 to 13 F150 GEN II system utilizes the proven designs from our 2014 system at an affordable price and fast install for the earlier model trucks. This system features a heavy-duty 1/4 Inch thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. Fabtech extended length ductile iron steering knuckles allow use of 18 Inch or 20 Inch wheels. The Basic GEN II System features a front spacers utilizing the factory Coilover shock while the rear receives Fabtech Stealth monotube shocks. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty


[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 6 Inch, Front Lift Type: Strut Assembly Extension, Rear Lift Type: Blocks And U-Bolts, Maximum Tire Size: 35 x 13.50, Shock Type: Nitrogen Gas Charged, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 18, Wheel Offset (MM): 0, Shocks: With Shocks In Kit, Color: Black Components/ Black Shock Absorbers]

Kit components:
{Fabtech Motorsports FTS22172 (F37 FTS22172); Quantity Required: 1; Lift Kit Component; Component For Lift Kits K2190}
, {Fabtech Motorsports FTS22173 (F37 FTS22173); Quantity Required: 1; Lift Kit Component; Component For Lift Kits K2190/ K2191DB}
, {Fabtech Motorsports FTS6266 (F37 FTS6266); Quantity Required: 2; Shock Absorber; Stealth Series; Nitrogen Gas Charged Mono Tube; Limited Lifetime Warranty; Non Adjustable Valving}
