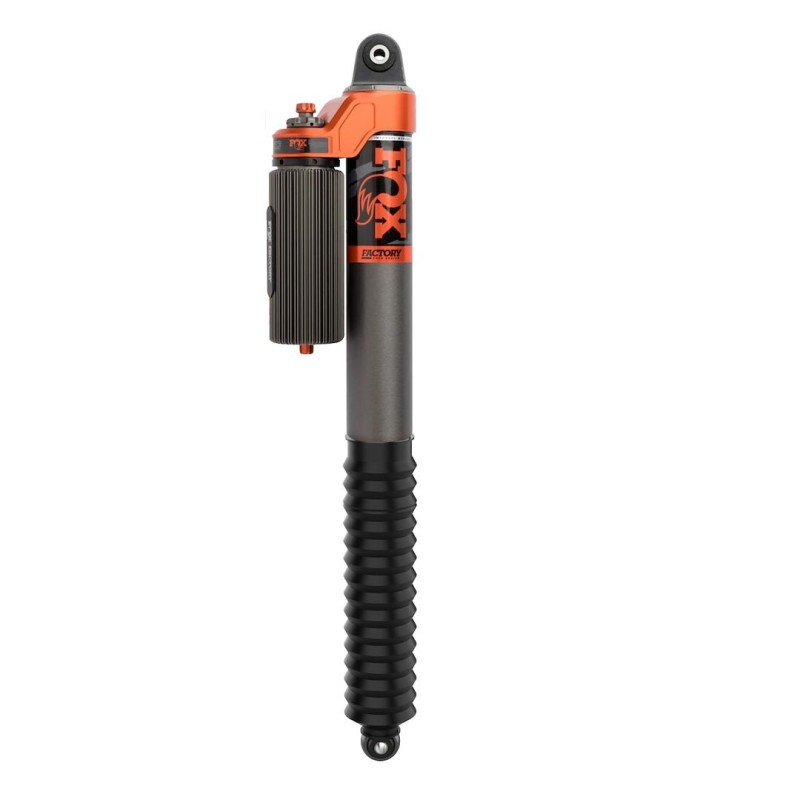

Shock Absorber for 2021-2023 Ford F-150 2WD/4WD 0-1'' Rear Lift FOX

883-26-121 FOX Shock Absorber


Extended length, in. :28.3 Inch
Collapsed length, in. :17.58 Inch
Upper mount: Eyelet
Lower Mount: Eyelet
Shock Absorber; 3.0 Factory Series; Hydraulic/ Nitrogen Gas Charged; Tri-Tube; External Bypass With Reservoir; 7/8 Inch Shaft; Dampening Adjustable; Set Of 2
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: Yes Extended Length (IN): 28.3 Inch Compressed Length (IN): 17.58 Inch Upper Mounting Style: Eyelet Lower Mounting Style: Eyelet Body Color: Gray Quantity: Set Of 2 Valving Type: 3 Stage Dual Valving Ride Height Adjustable: Yes Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: Yes Includes Boot: Yes Estimated Install Time (Hours): 1 FOX Factory Race Series 3.0 Internal Bypass shocks for the 14th generation Ford F-150 deliver position-sensitive damping technology, Dual Speed Compression (DSC) adjustment and high-speed ready performance in a bolt-on kit. Patented Internal Bypass technology allows for multiple zones of damping control. The result is a comfortable, confident ride with increased damping force through rough terrain. Internal bypass shocks produce more force progressively to control hard bottom-outs, prevent harsh top-outs and provide an initial catch for landing. Shock fluid bypasses the main piston through a series of bleed holes in the ride zone. As the shock extends past the ride zone in rebound or compression, the bleed holes terminate, forcing fluid through the main piston. The Factory Race Series shocks also stay cool by utilizing a Recirculating Reservoir Bridge. The bridge circulates shock fluid between the finned external reservoir and body using checked ports. Type III anodization prevents corrosion and wear of the 3 Inch diameter aluminum bodies. The DSC adjuster allows you to dial in your F-150 for load, environment and driving style. FOX Internal Bypass shocks deliver the support and confidence you need while driving Mach-3 through rugged terrain. Experience race-bred performance next time you leave the pavement. Features & Benefits 3 Inch Impact Extruded And CNC Machined 6061-T6 Hard-Anodized Aluminum Body Patented, Internal Bypass Design Application Specific Springs Features 7/8 Inch Stainless Steel Shafts Vehicle-Specific Tuning Maximizes Performance Redundant Sealing Pack System: Main Seal, Wiper Seal, Scraper Seal Recirculating Reservoir Bridge Keep Shock Temperatures Cool Finned Reservoir, With DSC Adjuster Rear Shaft Guards Protect Against Roost Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-334_REV-A_COLOR.pdf
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: Yes, Extended Length (IN): 28.3 Inch, Compressed Length (IN): 17.58 Inch, Upper Mounting Style: Eyelet, Lower Mounting Style: Eyelet, Body Color: Gray, Quantity: Set Of 2, Valving Type: 3 Stage Dual Valving, Ride Height Adjustable: Yes, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: Yes, Estimated Install Time (Hours): 1]
