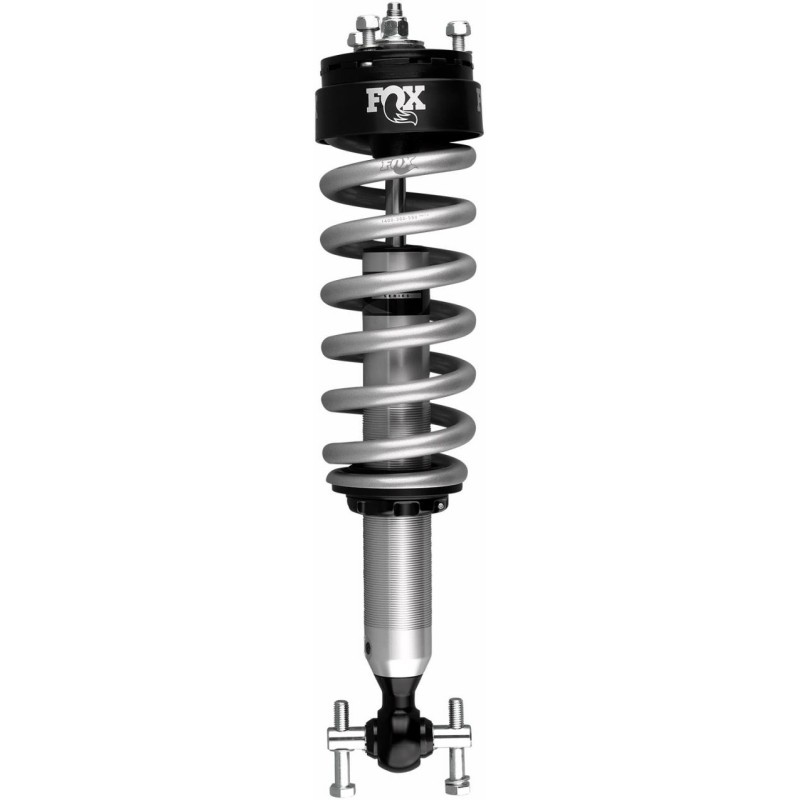

Coil Over Shock Absorber for 2021-2023 Ford F-150 2WD 0-2.5'' Front Lift

985-02-147 FOX Coil Over Shock Absorber
For [0.0, 0.25, 0.5, 0.75, 1.0, 1.25, 1.5, 1.75, 2.0, 2.25, 2.5] '' Lift

Extended length, in. :22.08 Inch
Collapsed length, in. :18-1/2 Inch
Upper mount: Strut
Lower Mount: Cross Pin
Coil Over Shock Absorber; 2.0 Performance Series; Non Adjustable Valving; Ride Height Adjustable 0 To 2-1/2 Inch Lift; Single Flat End Coil Spring; Zinc; Single
Attributes Adjustable: No Valving Type: Non Adjustable Valving Shock Type: Nitrogen Gas Charged Upper Mounting Type: Strut Lower Mounting type: Cross Pin Front/Rear Drop (IN): 0 To 2-1/2 Inch Extended Height (IN): 22.08 Inch Compressed Height (IN): 18-1/2 Inch Shock Body Color: Silver Shock Body Material: Aluminum Quantity: Single Spring Style: Single Flat End Coil Spring Spring Finish: Anodized Spring Color: Silver Spring Material: Aluminum Includes Mounting Hardware: No Performance Series 2.0 coil-over and smooth-body internal floating piston (IFP) shocks are a bolt-on solution tuned specifically for your 14th generation Ford F-150. These shock packages have been designed to level or raise your F-150 without putting strain on ball joints or linkages that might compromise reliability or vehicle behavior. Increase your truck's off-road capability with higher capacity 2 Inch diameter dampers and an IFP to separate the shock fluid and gas. Navigate rough terrain all day and retain precise handling and consistent damping. Experience on-road comfort with performance-minded shock valving for a connected ride with less vehicle sway. The larger 2.0 monotube design allows for significantly larger pistons than stock, giving you the capacity to keep loads in check and improve your comfort and control while towing. Features & Benefits 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time Body Plating - Clear-Anodized For A Durable Finish Reservoir: Internal IFP Mono-Tube Reservoir Design Shaft: 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Piston : Race-Developed High-Flow Piston Design Valving : Application Specific Valving To Maximize Performance Seals : Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Bushings: Quiet Nitrile Rubber Allows For Increased Suspension Articulation Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-333-REV-A-COLOR.pdf
[Adjustable: No, Valving Type: Non Adjustable Valving, Shock Type: Nitrogen Gas Charged, Upper Mounting Type: Strut, Lower Mounting type: Cross Pin, Front/Rear Drop (IN): 0 To 2-1/2 Inch, Extended Height (IN): 22.08 Inch, Compressed Height (IN): 18-1/2 Inch, Shock Body Color: Silver, Shock Body Material: Aluminum, Quantity: Single, Spring Style: Single Flat End Coil Spring, Spring Finish: Anodized, Spring Color: Silver, Spring Material: Aluminum, Includes Mounting Hardware: No]
