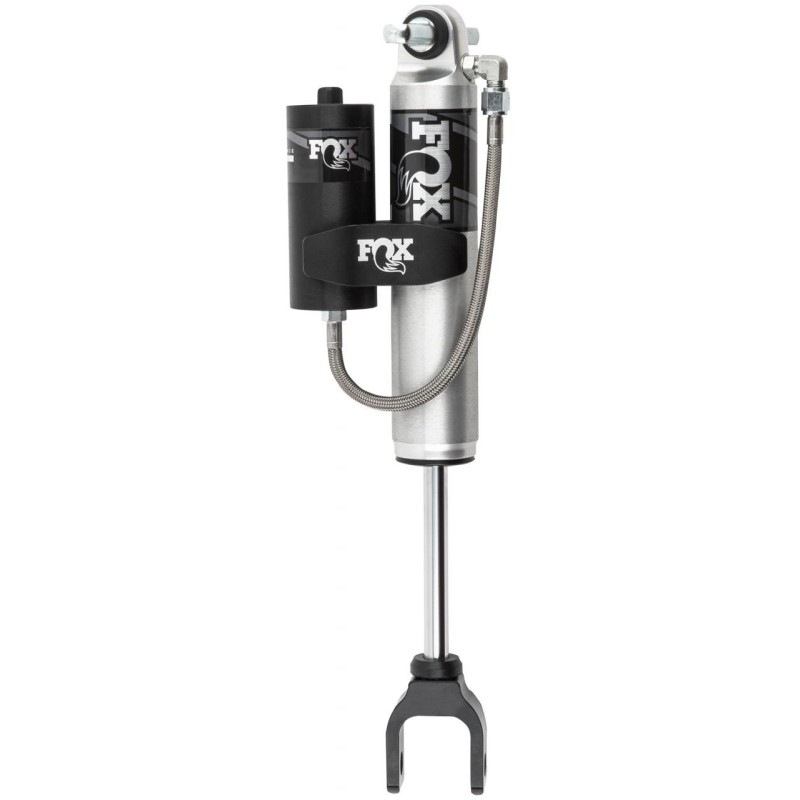

Shock Absorber for 2011-2019 Chevrolet Silverado 3500 HD 2WD/4WD 1.5-3.5'' Front Lift FOX

985-24-191 FOX Shock Absorber


Extended length, in. :20.28 Inch
Collapsed length, in. :13.18 Inch
Upper mount: Stud
Lower Mount: Clevis
Shock Absorber; Performance; Hydraulic/ Nitrogen Gas Charged; With Remote Reservoir; 1 Year Warranty; Non-Adjustable Valving; Without Shock Boots; Black/ Silver; Single
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 20.28 Inch Compressed Length (IN): 13.18 Inch Upper Mounting Style: Stud Lower Mounting Style: Clevis Body Color: Silver Quantity: Single Universality: Vehicle Specific Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: Yes Includes Dust Shield: No Includes Hardware: No Includes Boot: No Estimated Install Time (Hours): 0.5 The aluminum bodied Performance Series 2.0 Reservoir smooth body shock delivers FOX's industry leading and race dominating performance in an affordable, hassle-free bolt on package. Its heat reducing design includes a metal impacted clear anodized aluminum shock body that dissipates heat faster than a conventional steel body shock. Its external reservoir allows for increase oil and nitrogen capacity while delivering striking race look. The included black anodized reservoir mounting clamp and other components are CNC machined from 6061-T6 aluminum. The race developed high flow damping piston matched with application specific vavling provides the Performance Series 2.0 Reservoir shock a predicable ride quality capable of handling the roughest road conditions. Features & Benefits Body : 2.0 Inch Impact Extruded And CNC Machined 6061-T6 Clear Anodized Aluminum One-Piece Body Resists Rust Over Time Body Plating : Clear-Anodized For A Durable Finish Reservoir : 2.0 Inch Smooth Bore 6061-T6 Aluminum Is Hard Anodized Components :Black-Anodized, CNC-Machined 6061-T6 Billet Aluminum Shaft : 5/8 Inch Hard Chrome Plated Heat-Treated Alloy Steel Piston : Race-Developed High-Flow Piston Design Seals : Redundant Sealing Pack System Main Seal, Wiper Seal, Scraper Seal Oil : JM92 Advanced Suspension Fluid For Improved Performance At Variable Temperatures Bushing : Quiet Nitrile Rubber Allows For Increased Suspension Articulation Limited 1 Year Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSReservoir_Exploded_A.pdf
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 20.28 Inch, Compressed Length (IN): 13.18 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Clevis, Body Color: Silver, Quantity: Single, Universality: Vehicle Specific, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: Yes, Includes Dust Shield: No, Includes Hardware: No, Includes Boot: No, Estimated Install Time (Hours): 0.5]
