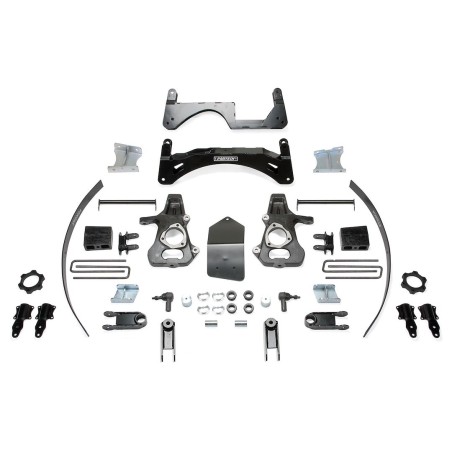

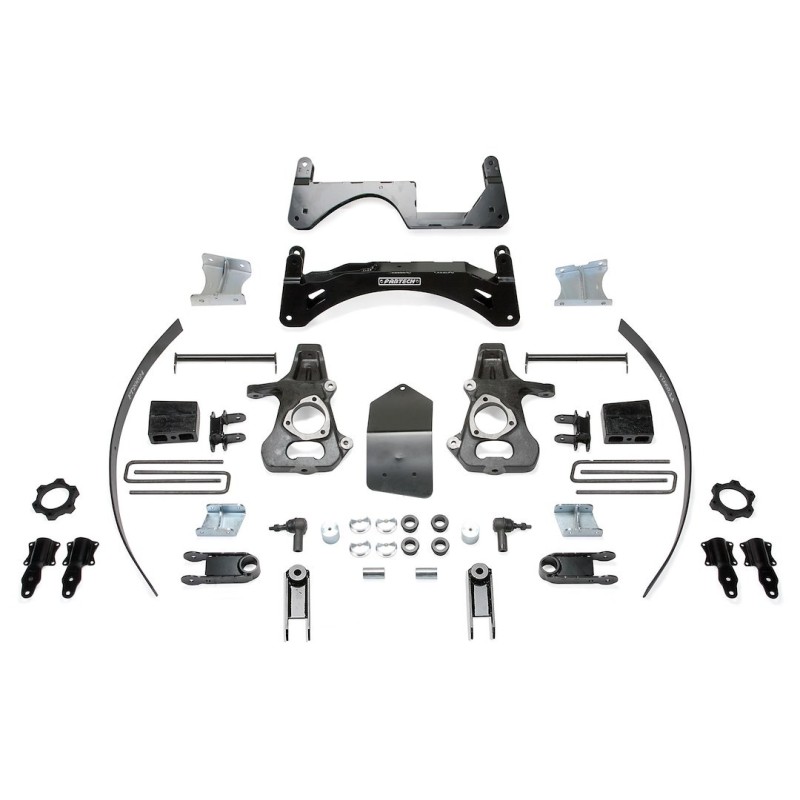

Lift Kit for 2014-2018 Chevrolet Silverado 1500 4WD Front and Rear

K1093 Fabtech Lift Kit Suspension

[Full Front and Rear]
Lift Kit Suspension; Basic System; 6 Inch Front Lift; 6 Inch Rear Lift; Without Shock Absorbers In Kit - Shock Change Not Necessary; Black Components; With Front And Rear Crossmembers/ Driver And Passenger Differential Brackets/ Differential Skid Plate/ Shock Brackets And Extensions/ Driver And Passenger Spindles/ C.V. Axle Spacer/ Sway Bar Brackets/ Add-A-Leafs/ Lift Blocks With Hardware/ Bump Stops/ Installation Hardware
Attributes Front Lift Amount (IN): 6 Inch Rear Lift Amount (IN): 6 Inch Front Lift Type: Differential Drop Bracket Rear Lift Type: Blocks And U-Bolts Maximum Tire Size: 35 x 12.50 Shock Type: Without Shocks Wheel Backspacing (IN): 5.00 Minimum Wheel Diameter: 17 Wheel Offset (MM): 12.7 Shocks: Without Shocks In Kit Color: Black Components Our 6 Inch Basic System has been designed utilizing our industry leading crossmember and spindle technology. Lift is accomplished by utilizing the factory front Coilover shocks with steel spacers that helps retain the stock ride of the front suspension. The 1/4 Inch thick steel lower control arm has been formed to fit to the bottom of the 2014 frame without having to cut or modify it for a fast installation. Extensive design work was given to the extended length steering knuckles specifically for the Aluminum component version keeping track width near stock and working properly with the Stablitrac ® safety functions. The front differential is relocated with heavy-duty brackets while a tightly formed 1/4 Inch thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5 Inch tall blocks and u bolts. Features & Benefits Provide A Superior Ride Quality Both On And Off-Road Ultimate In Suspension Performance Made In USA Fast And Trouble-Free Installation Limited Lifetime Warranty

https://vehiclepartimages.com/PMDT/FAB/InstallationInstructions/FT21195i.pdf
[Front Lift Amount (IN): 6 Inch, Rear Lift Amount (IN): 6 Inch, Front Lift Type: Differential Drop Bracket, Rear Lift Type: Blocks And U-Bolts, Maximum Tire Size: 35 x 12.50, Shock Type: Without Shocks, Wheel Backspacing (IN): 5.00, Minimum Wheel Diameter: 17, Wheel Offset (MM): 12.7, Shocks: Without Shocks In Kit, Color: Black Components]

Kit components:
{Fabtech Motorsports FTS21137 (F37 FTS21137); Quantity Required: 1; Lift Kit Component; Component For K1067/ K1067DB/ K1072DB/ K1068/ K1068DB/ K1073DB}
, {Fabtech Motorsports FTS21139 (F37 FTS21139); Quantity Required: 1; Lift Kit Component; Component For K1068/ K1068DB/ K1073 - ALUMINUM}
, {Fabtech Motorsports FTS21193 (F37 FTS21193); Quantity Required: 1; Lift Kit Component; Component For K1094}
, {Fabtech Motorsports FTS21221 (F37 FTS21221); Quantity Required: 1; Lift Kit Component; Component For K1093}
