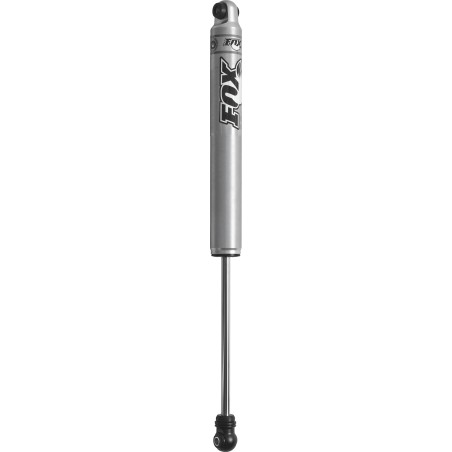

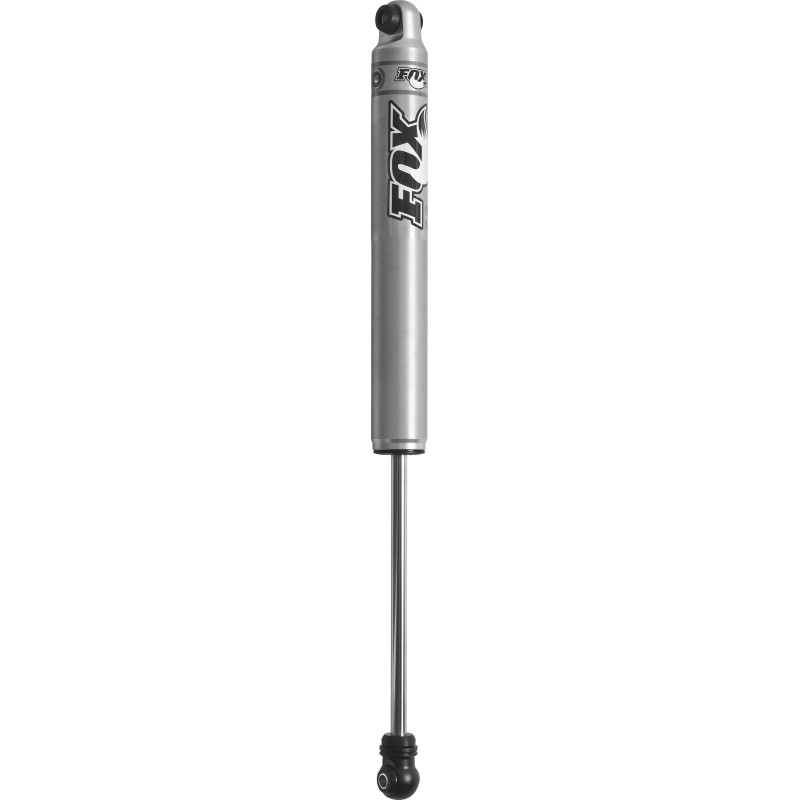

Shock Absorber for 1999-2006 Chevrolet Silverado 1500 4WD 0-1'' Front Lift FOX

985-02-009 FOX Shock Absorber


Extended length, in. :15.83 Inch
Collapsed length, in. :11.23 Inch
Upper mount: Stud
Lower Mount: Clevis
Shock Absorber; Performance Series; Hydraulic/ Nitrogen Gas Charged; Smooth Body Style; Without Reservoir; 1 Year Factory Warranty; Non-Adjustable; Single
Attributes Type: Hydraulic/ Nitrogen Gas Charged With Coil Spring: No Internal Design: Monotube Adjustable Valving: No Extended Length (IN): 15.83 Inch Compressed Length (IN): 11.23 Inch Upper Mounting Style: Stud Lower Mounting Style: Clevis Body Color: Silver Quantity: Single Universality: Semi-Universal Rod Diameter (IN): 5/8 Inch Valving Type: Application Specific Valving Rod Material: Steel Body Material: Aluminum With Reservoir: No Includes Dust Shield: No Includes Hardware: Yes Includes Boot: No Estimated Install Time (Hours): 0.5 The 2.0 Performance Series Shocks delivers race-dominating performance in a hassle free bolt-on package. Their heat-reducing design includes a metal-impacted aluminum shock body that dissipates heat faster than conventional steel. Inside the Internal Floating Piston (IFP) separates shock oil from a high-pressure nitrogen gas chamber that provides a predicable ride quality capable of handling the roughest road conditions. Combine these new technologies with a competitive price for a winning combination. Features & Benefits Packed With 35 Years Of Race Winning Technology Performance Tuned For Vehicle Specific Application Aluminum Body Dissipates Heat Faster Than Steel. Black Anodized CNC Machined Aluminum Components IFP Separates Oil From High-Pressure Nitrogen Gas 100 Percent Serviceable And Tunable For Longer Lifespan Application Specific Adjustable 3.0 Racing Spring Redundant Sealing System, Long Lasting Performance Limited 1 Year Factory And 90 Day Valving Warranty

https://vehiclepartimages.com/PMDT/FOX/InstallationInstructions/605-01-053_REV_C.pdf https://vehiclepartimages.com/PMDT/FOX/TechnicalBulletins/FOX_TRUCK_2.0PSIFP_Exploded_A.pdf
[Type: Hydraulic/ Nitrogen Gas Charged, With Coil Spring: No, Internal Design: Monotube, Adjustable Valving: No, Extended Length (IN): 15.83 Inch, Compressed Length (IN): 11.23 Inch, Upper Mounting Style: Stud, Lower Mounting Style: Clevis, Body Color: Silver, Quantity: Single, Universality: Semi-Universal, Rod Diameter (IN): 5/8 Inch, Valving Type: Application Specific Valving, Rod Material: Steel, Body Material: Aluminum, With Reservoir: No, Includes Dust Shield: No, Includes Hardware: Yes, Includes Boot: No, Estimated Install Time (Hours): 0.5]
